Mobile Phone Zone 2/22

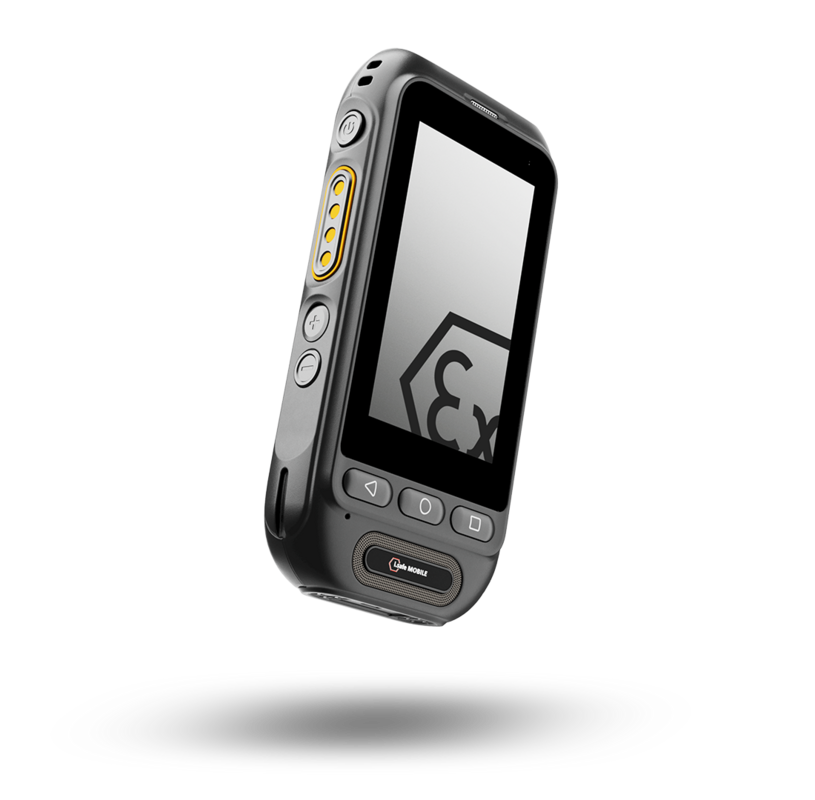

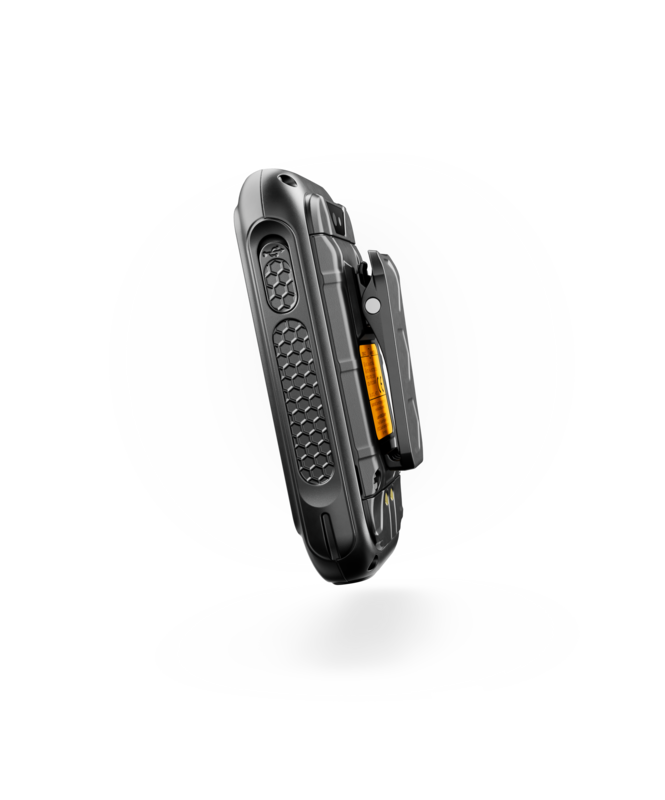

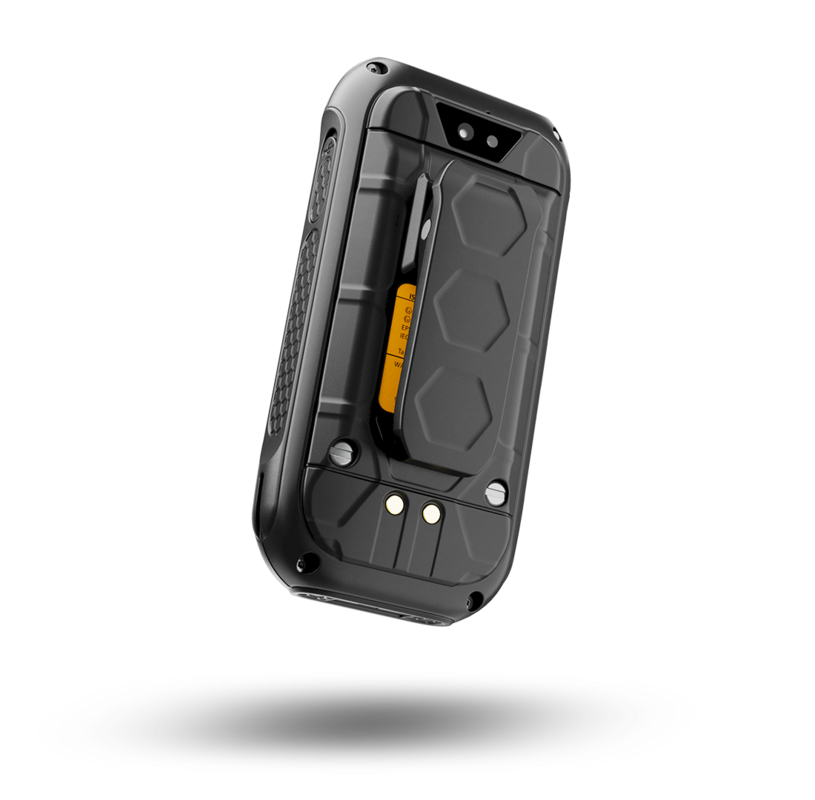

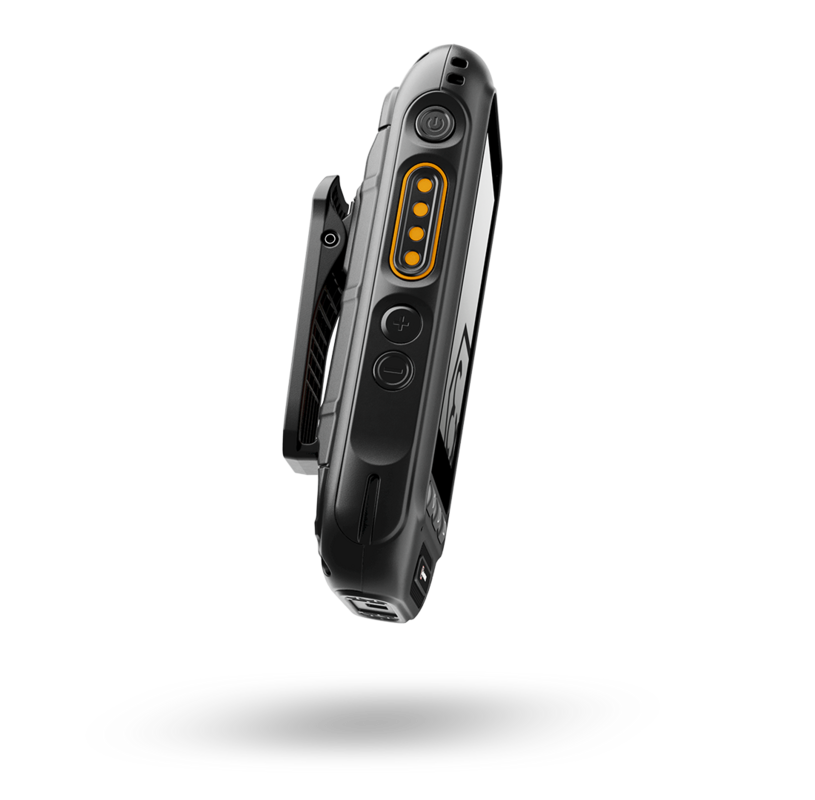

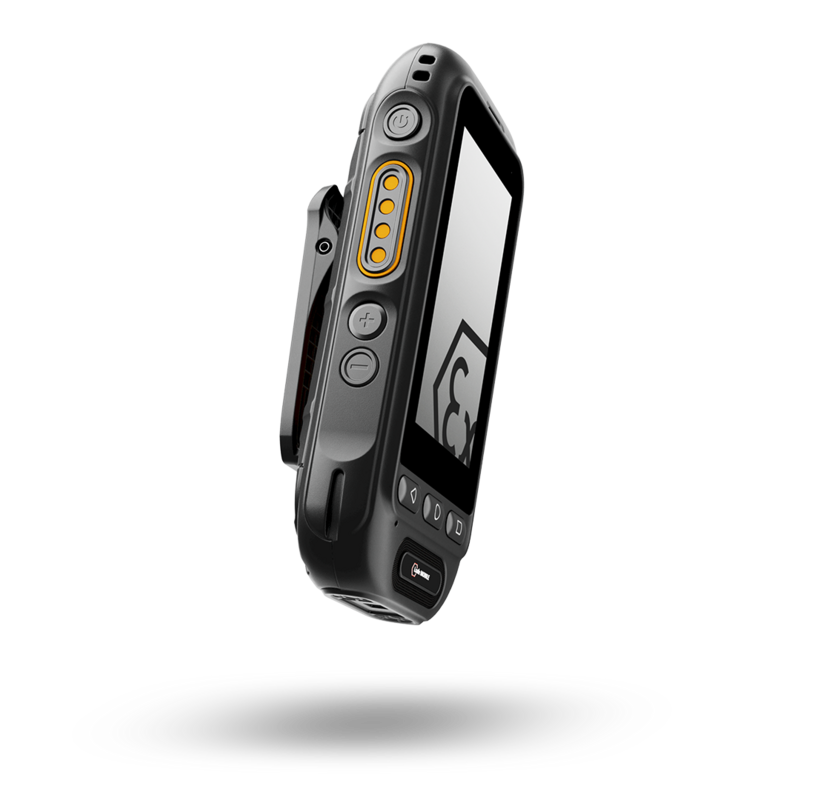

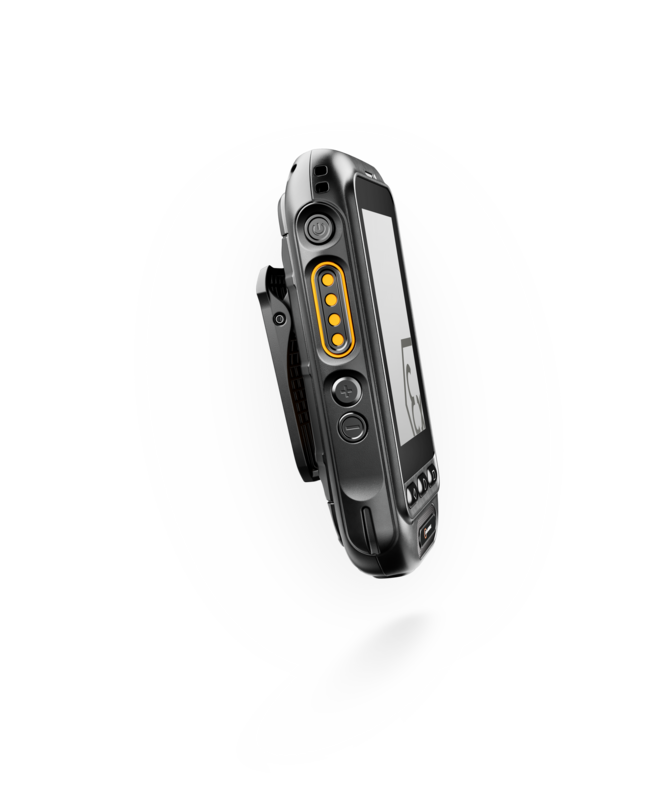

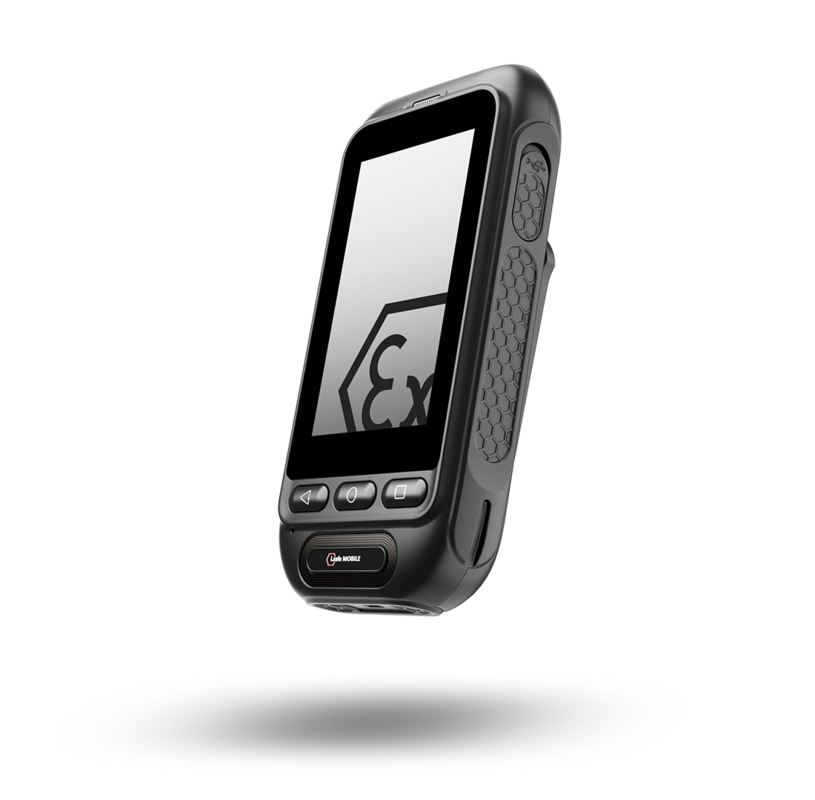

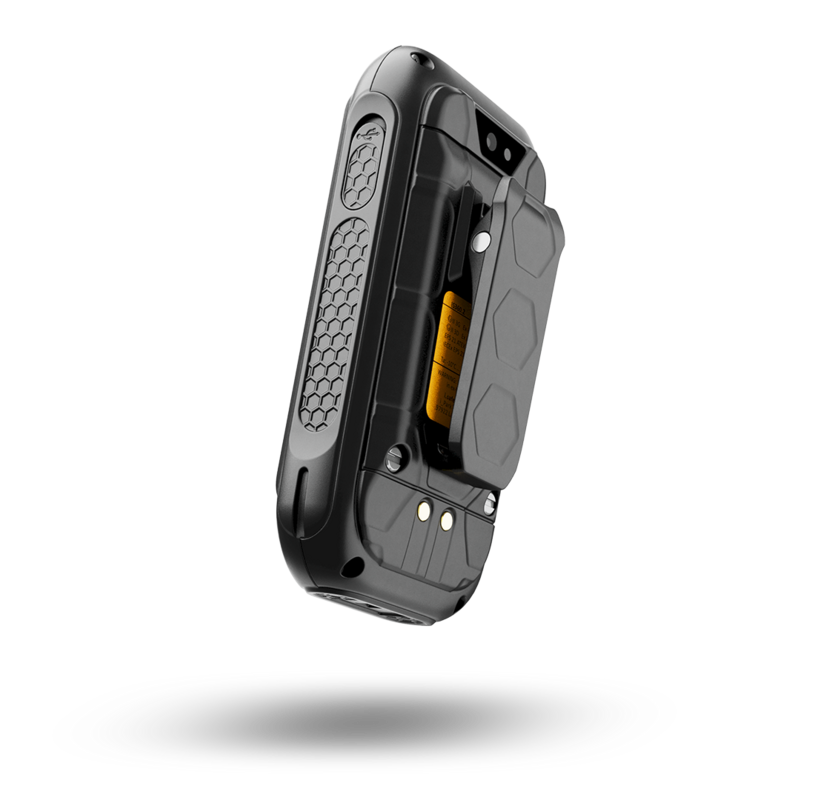

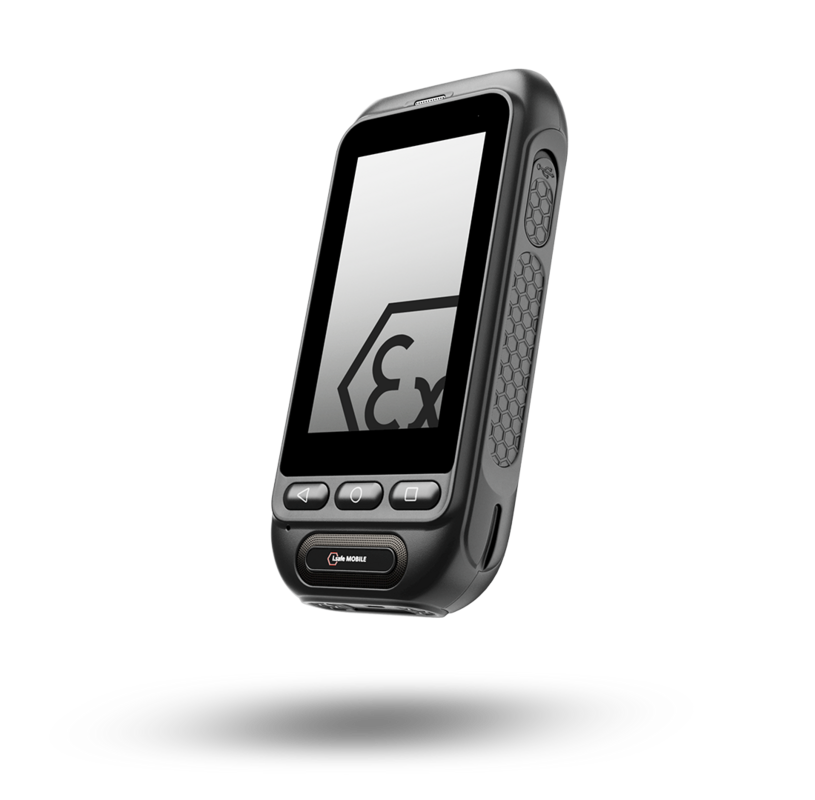

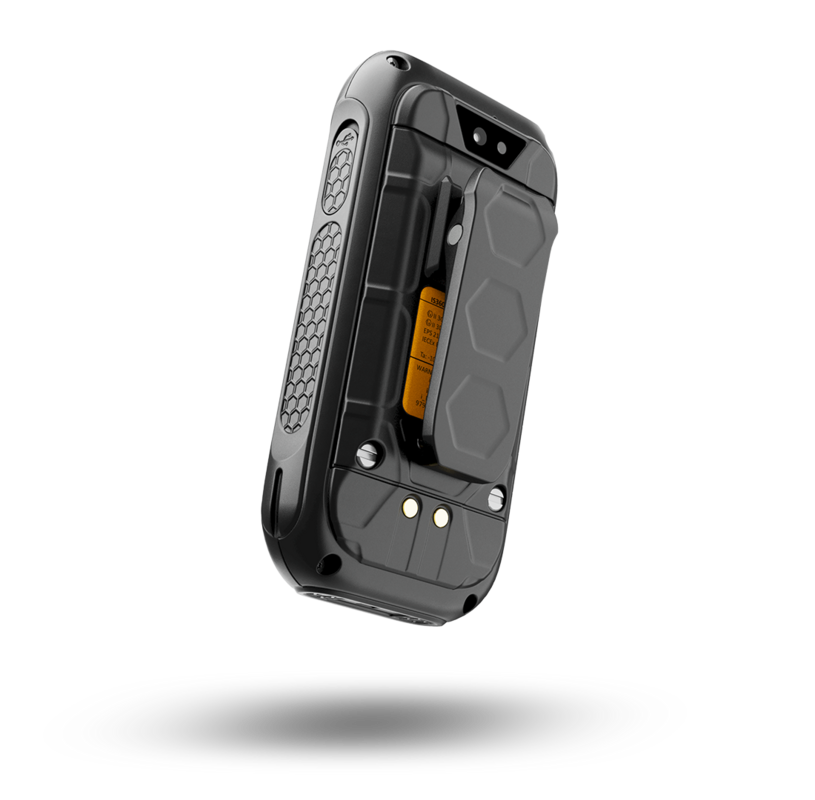

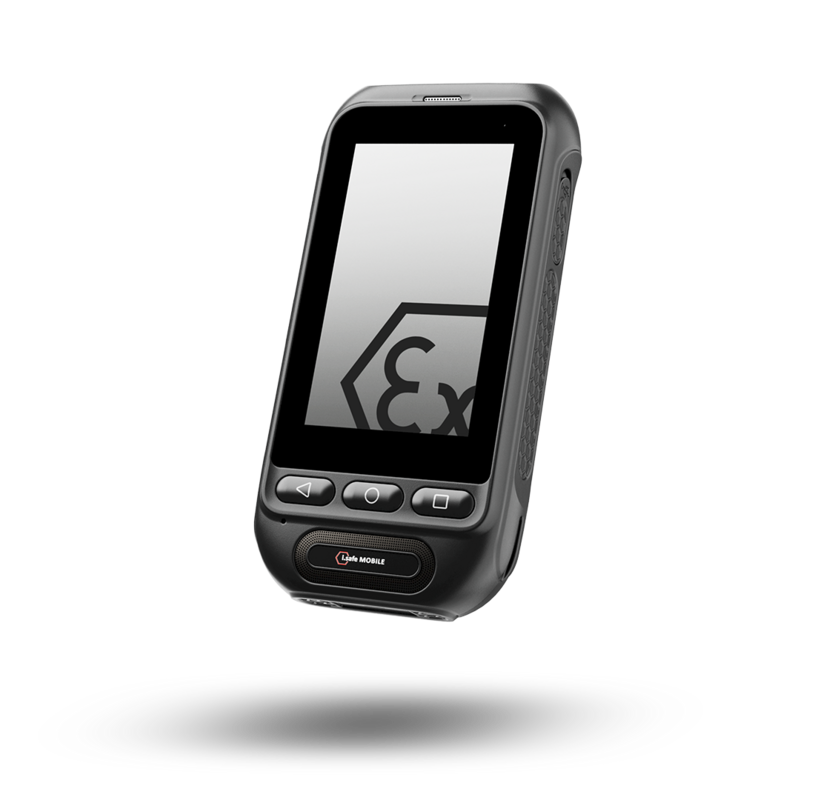

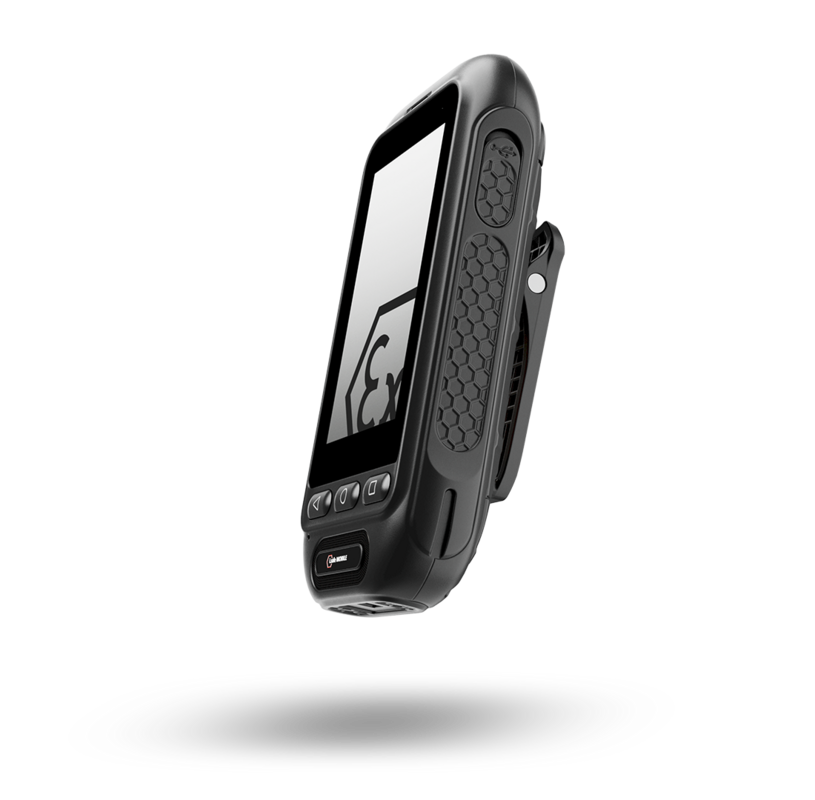

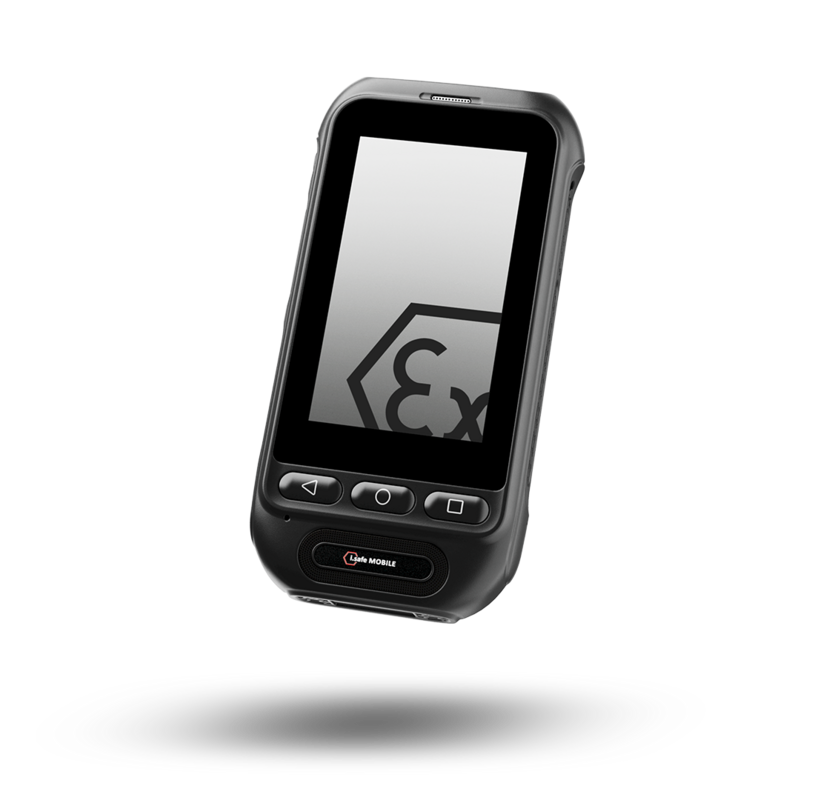

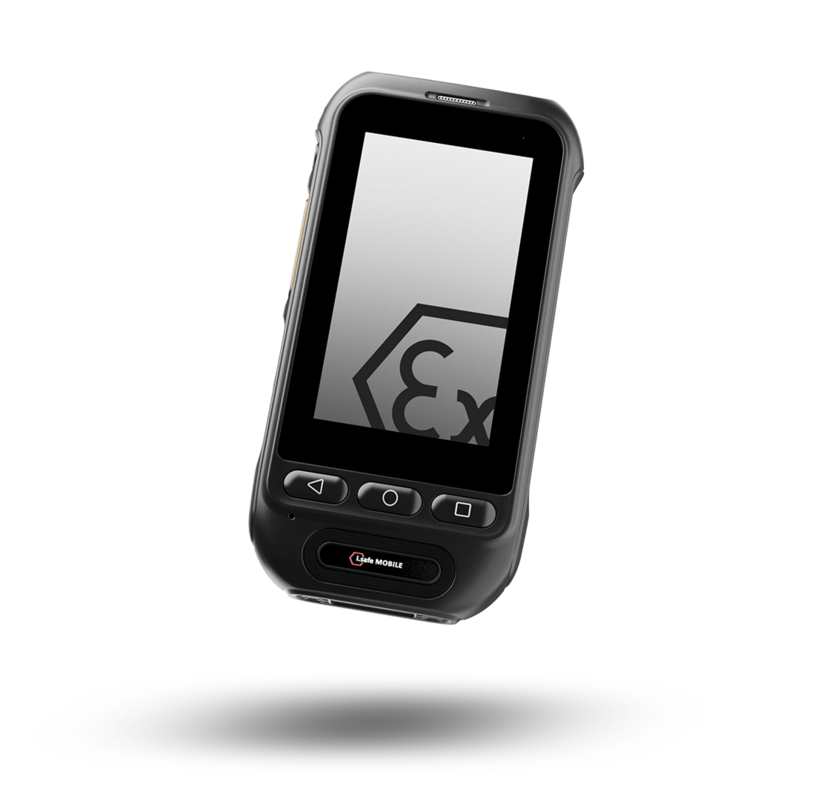

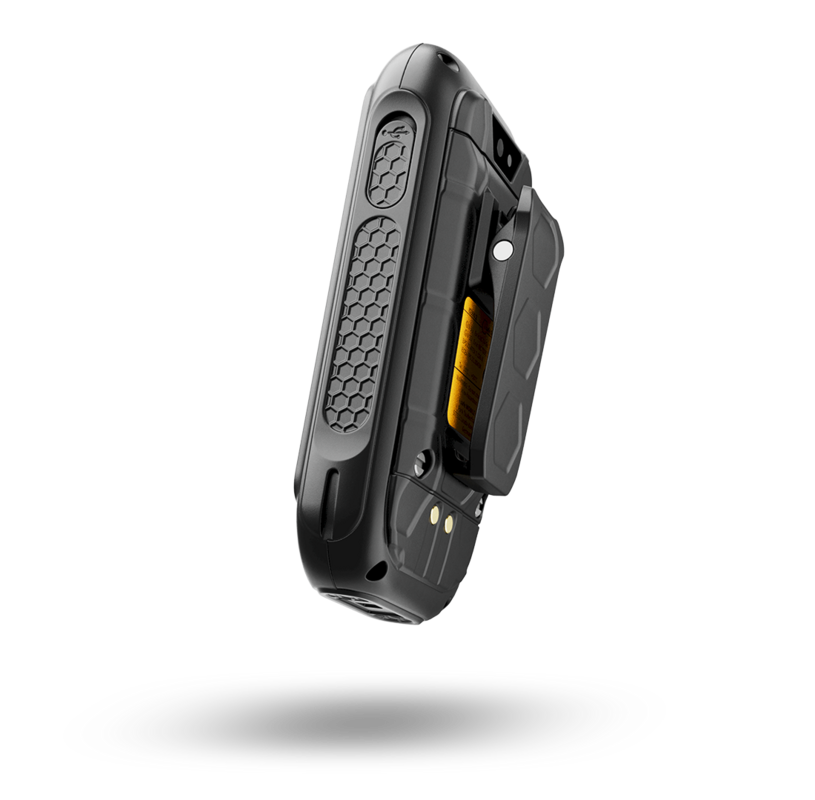

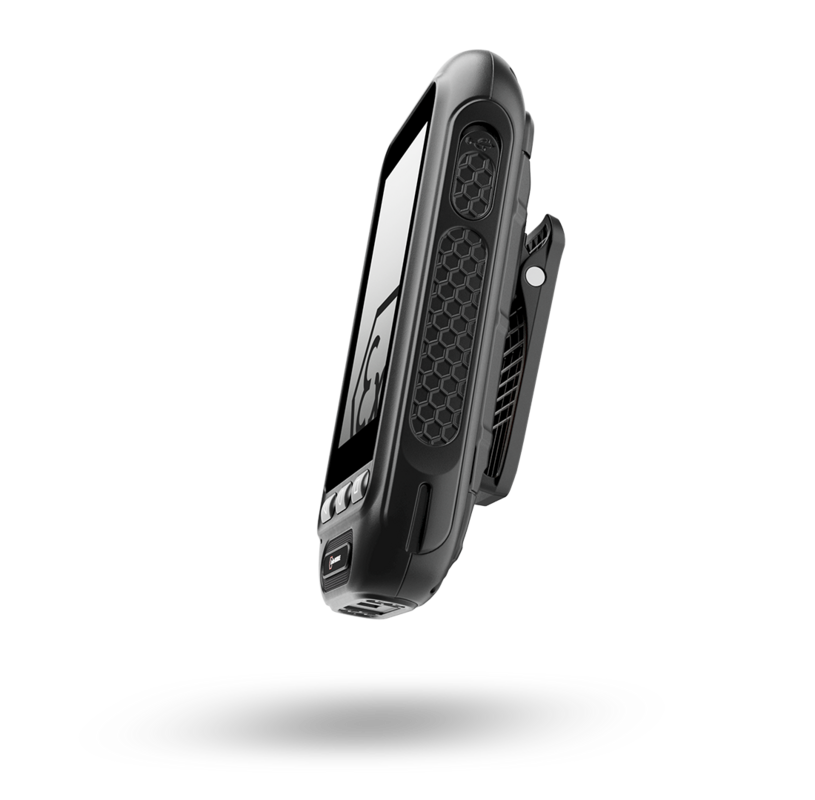

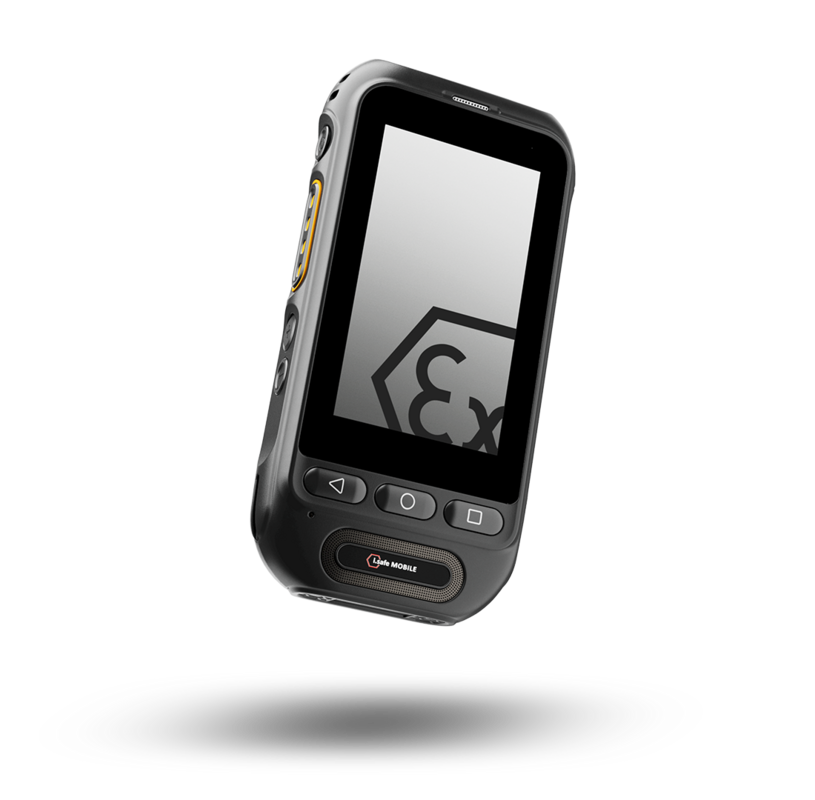

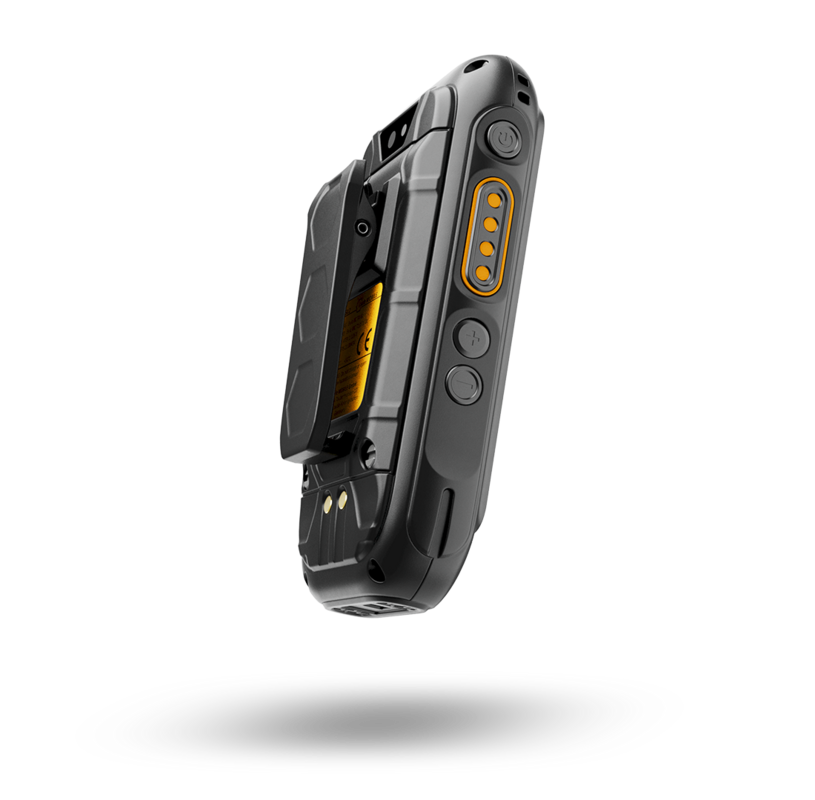

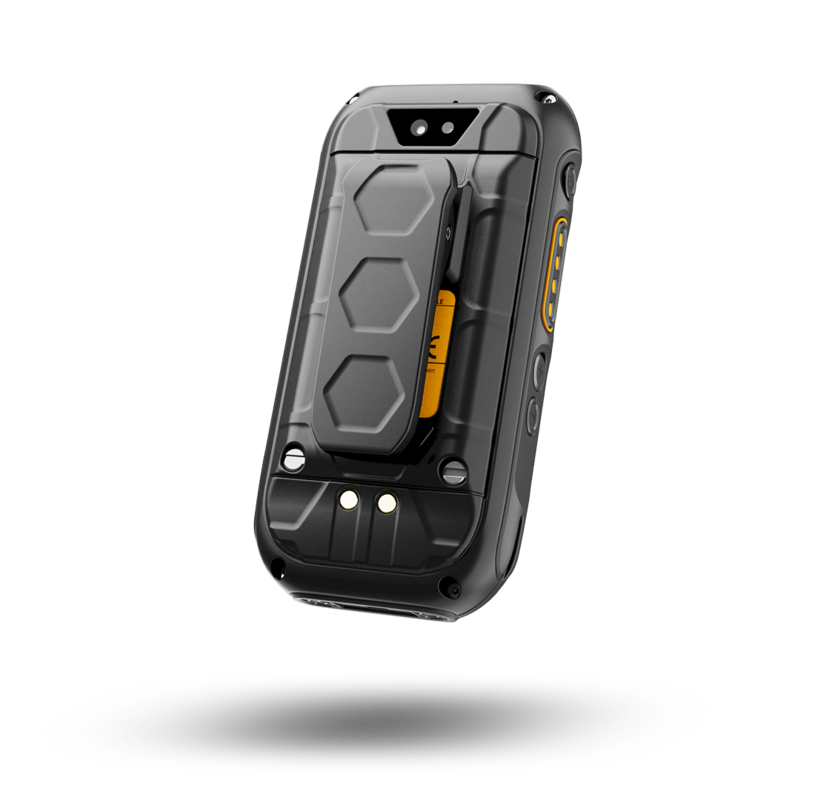

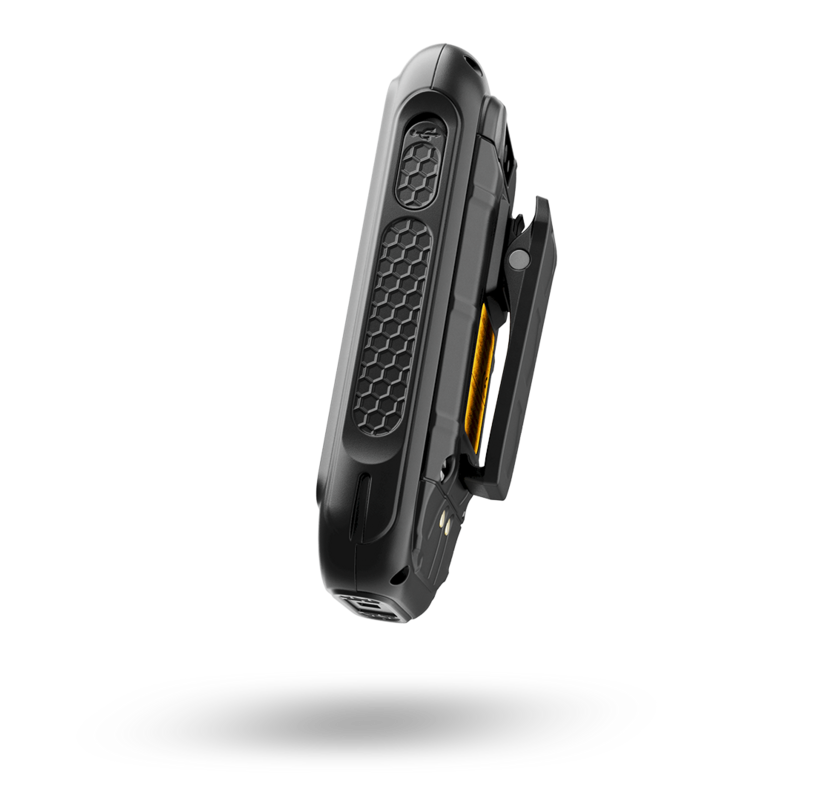

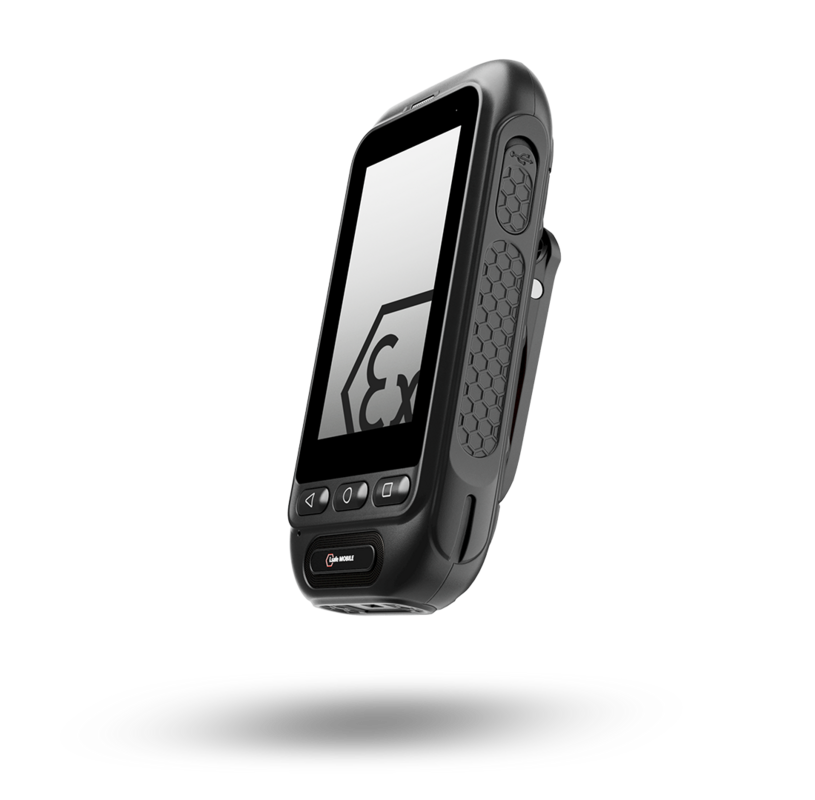

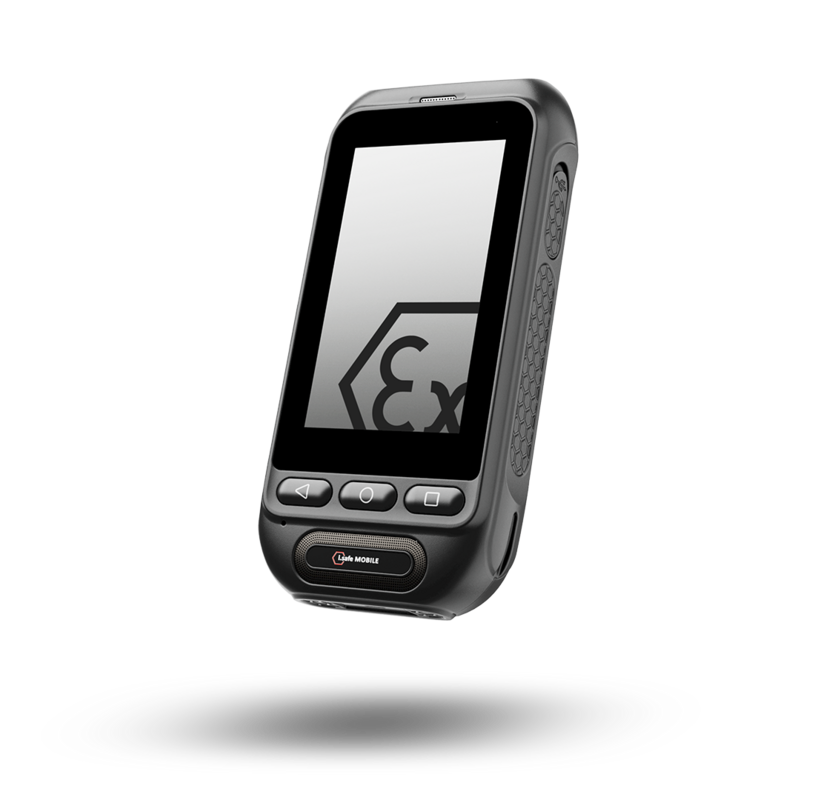

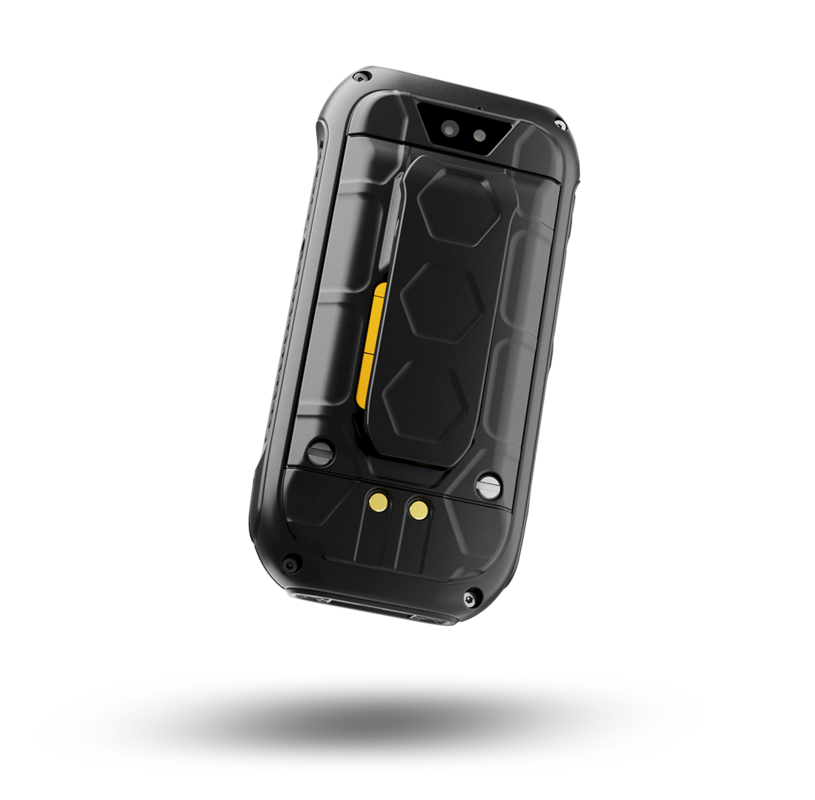

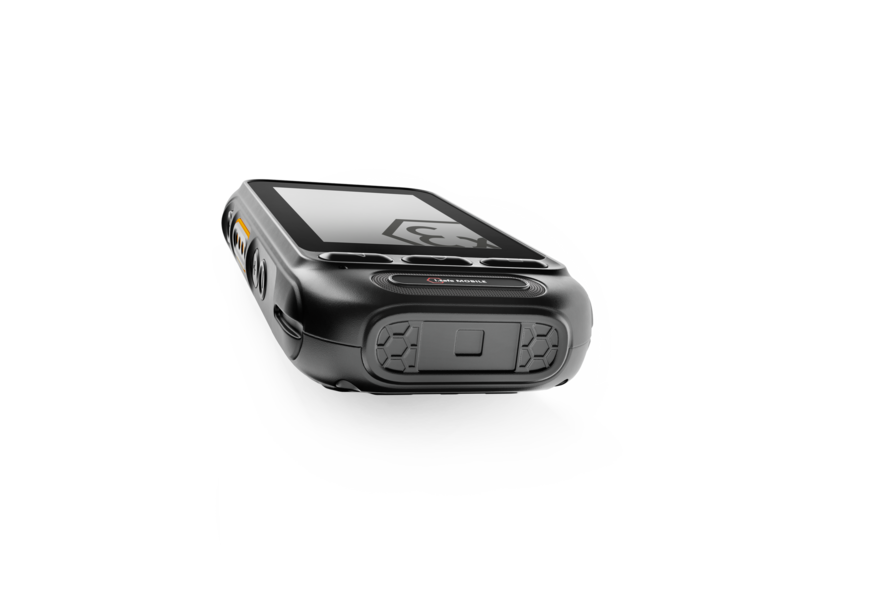

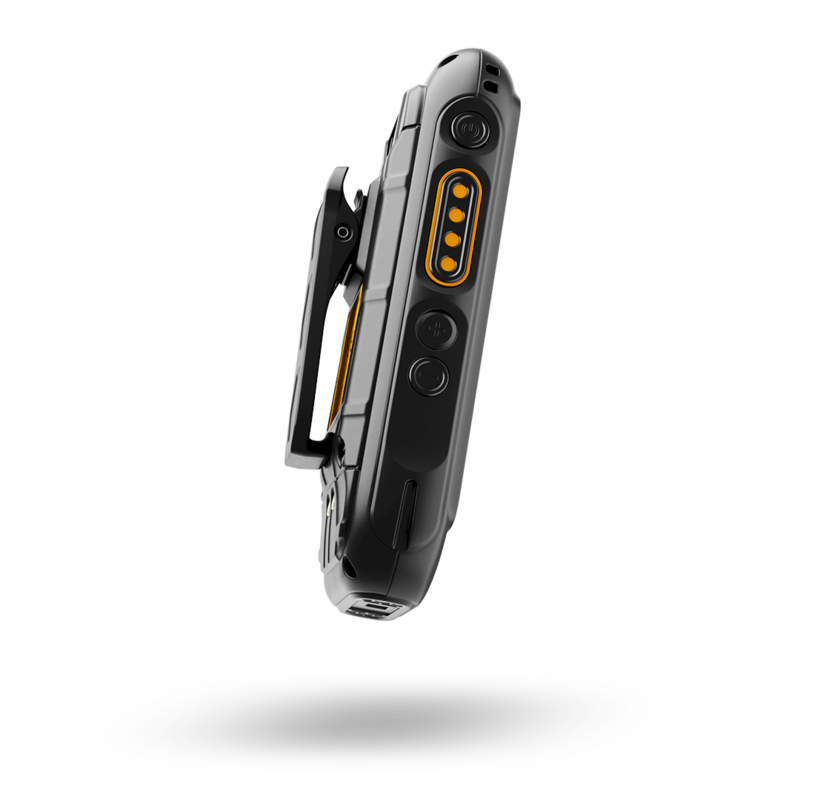

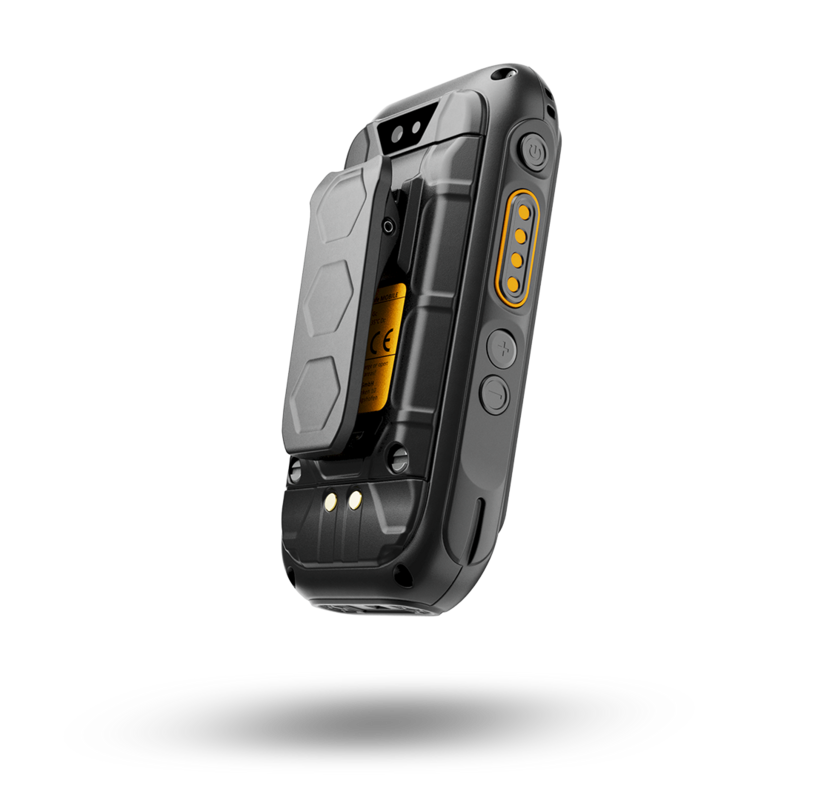

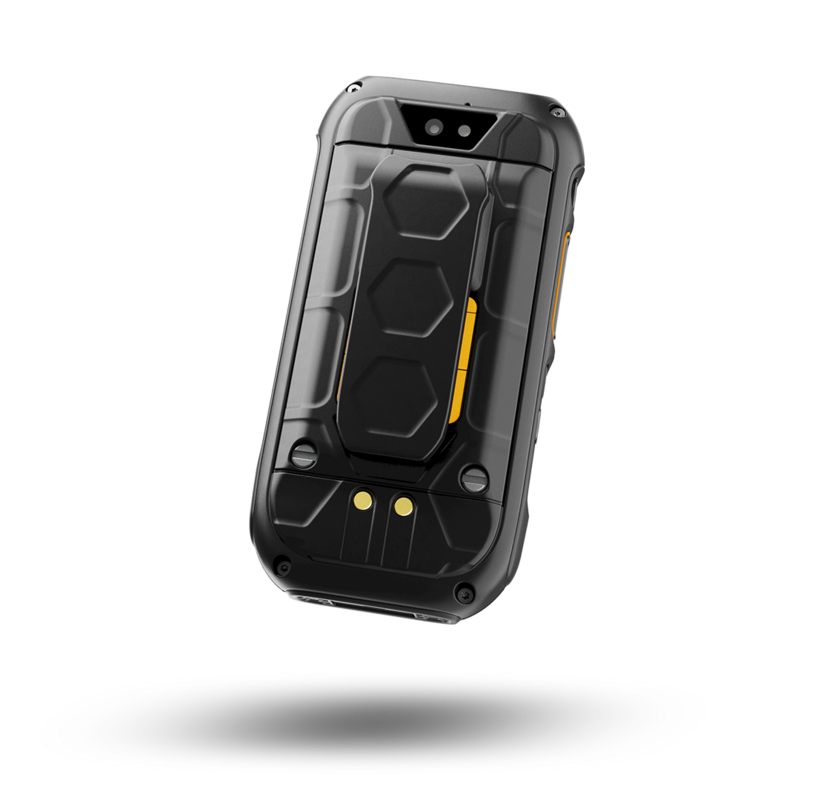

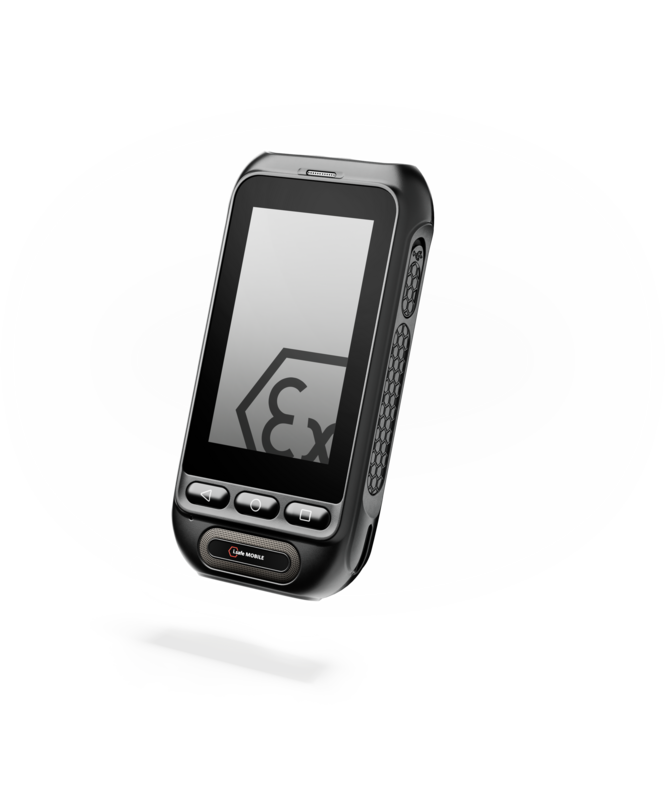

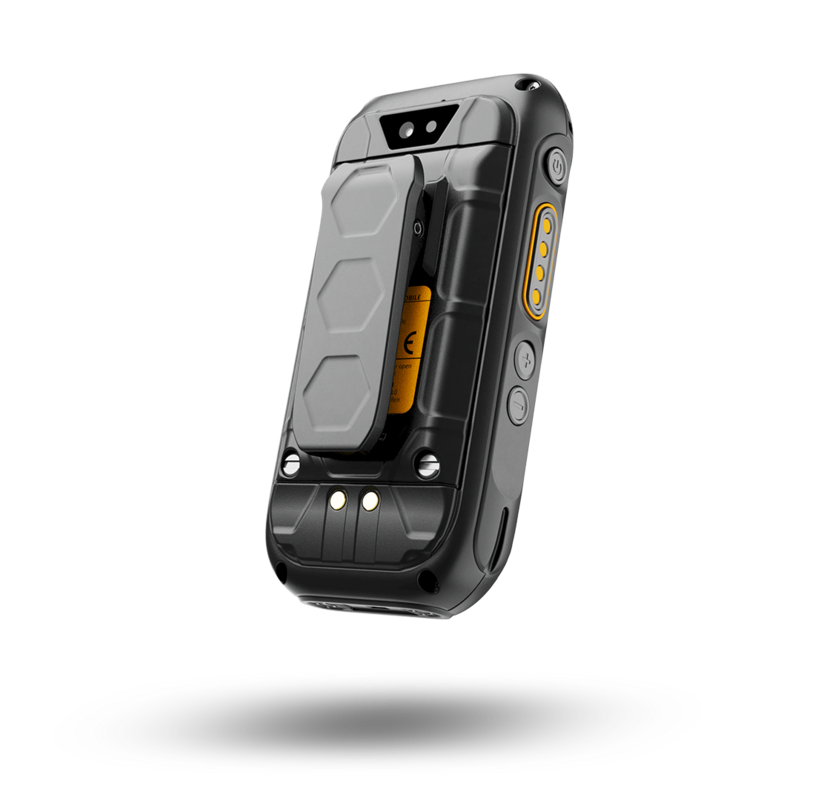

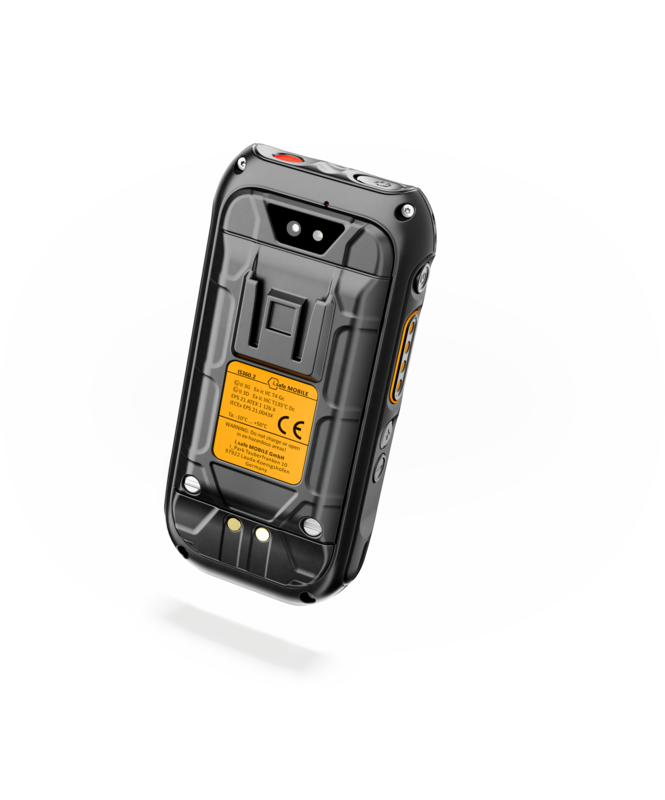

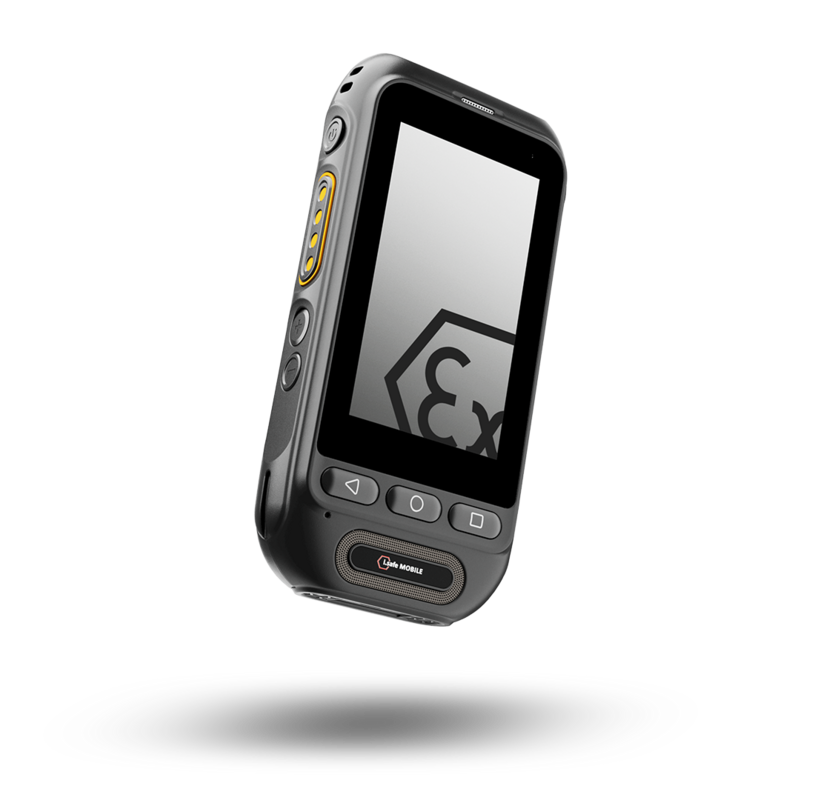

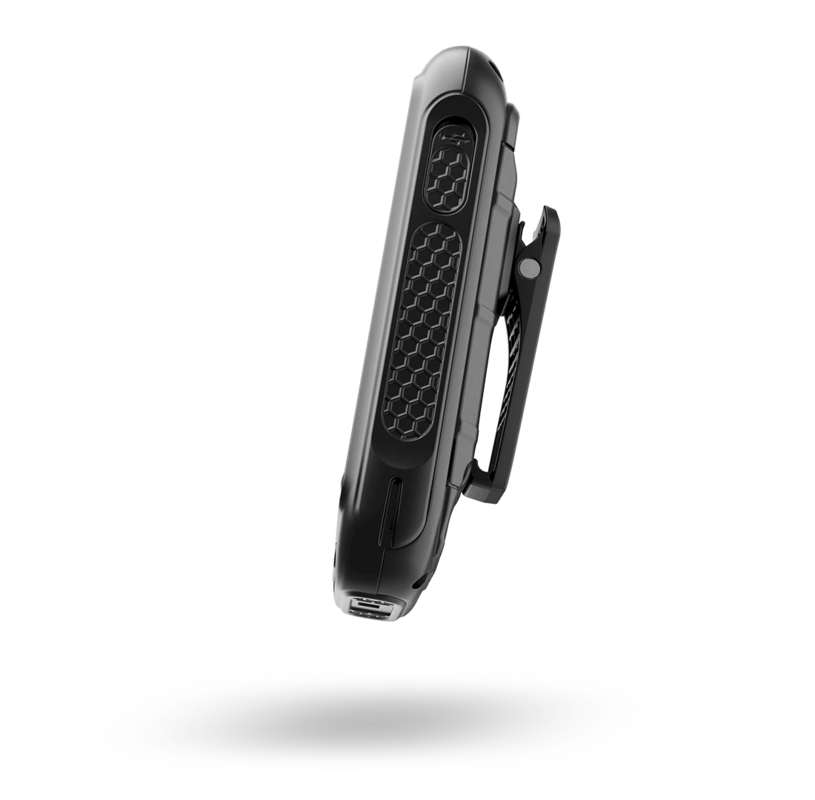

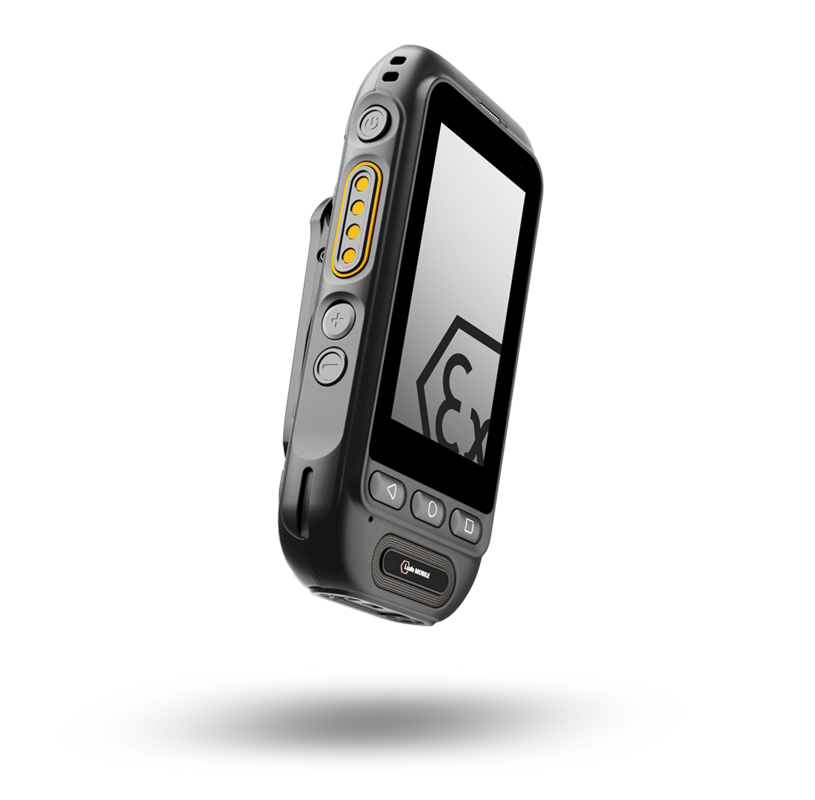

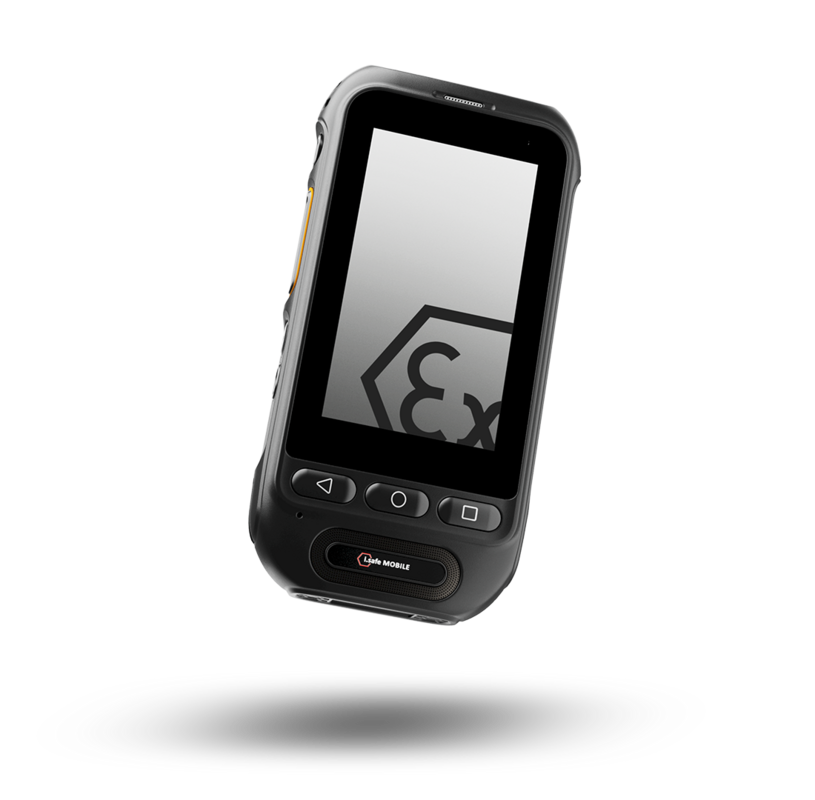

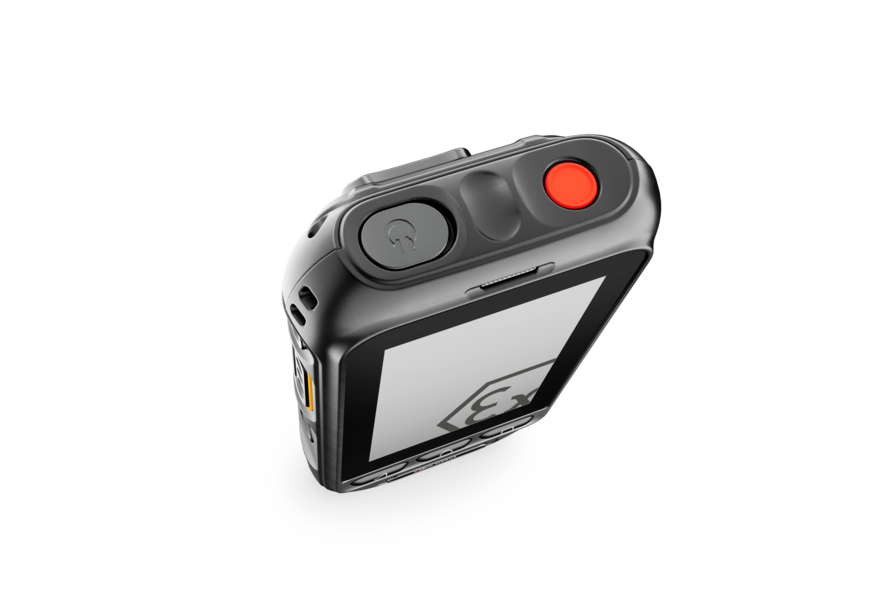

IS360.2

The handy mobile phone is designed for the classic main functions of telephony and messaging (SMS). The IS360.2 is equipped with a proprietary operating system without Play Store. Customized applications can be installed by i.safe MOBILE.
The simple operation via the 3" touchscreen and the convenient shape of the IS360.2 allow safe handling even in rough working environments and guarantee best communication between the conversation partners. Thanks to the powerful battery, it is ideally suited for long working shifts.

Advantages

  • 4G Telephony
  • High-performance battery for long work shifts
  • Amplified loudspeaker for noisy work environments
  • Individually programmable keys
  • Lightweight and robust

Technical features

Operating systemISM-OS
ProcessorMediatek MT6739V/WA Quad Core
Memory1 GB RAM
8 GB internal memory
microSD to 32 GB
Frequencies2G GSM 850/900/1800/1900 MHz
3G WCDMA B1/2/4/5/8
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
4G LTE-TDD: B38/B40/B41
DimensionsSize: 120,2 x 61,5 x 27,5 mm
Weight: 195,0 g
Display3,0" (7,62 cm) Rug Display Glass
usable with gloves
Battery3000 mAh, 3,8 V
replaceable
Camera2 MP FF rear
ConnectivityWi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n with hotspot
Bluetooth® 4.2 BLE
GPS, A-GPS, Glonass
Near Field Communication
Types of protectionIP68 dust-/waterproof
MIL-STD 810H
Usable from -10 °C to +50 °C

Further features

Individuelle Tasten
Freely programmable key
Ladeoptionen (Desktopcharger, Magnetic)
USB-C, Desktop Charger
Sensors
Accelerometer, Light, Magnetic, Proximity sensors
Verstärkter Lautsprecher
Amplified loudspeaker
Download datatsheet | pdf ▪ 550 KB

Approvals

ATEX (Europe)
ATEX (Europe)
approved
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc
IECEx (International)
IECEx (International)
approved
Ex ic IIC T4 Gc
Ex ic IIIC T135°C Dc

Contents

Included
  • Mobile Phone
  • Battery
  • Belt Clip
  • Power Adapter universal
  • USB-C Cable
  • Earphone
  • Screwdriver
  • Display Protection Foil
  • Safety Instructions
  • Quick Start Manual
APPROVED ACCESSORIES FOR IS360.2
Batteries
BPIS360.2A Battery
BPIS360.2A Battery
IS360.2 Li-Ionen Battery 3000 mAh, Type BPIS360.2A, Size: 60,3 x 34,6 x 13,5 mm (L x W x H)
Charging systems
IS-DC360.2 Desktop Charger Set
IS-DC360.2 Desktop Charger Set
Desktop charger for IS360.2 with a second charging slot for spare battery, Size: 87,9 x 81,9 x 49,9 mm (L x W x H)
IS-DC360.2 Desktop Charger Set
Operating Manual/Safety Instructions IS-DC360.2
pdf
2 MB
Download
Leather Cases
Leather Case black IS360.2
Leather Case black IS360.2
Made of high quality leather, black. With locking clip for quick attachment to the belt.
Leather Cases
Leather Case yellow IS360.2
Leather Case yellow IS360.2
Made of high quality leather, yellow. With locking clip for quick attachment to the belt.
Leather Cases
Leather Case univ IS120.x/IS360.2/IS725.2
Leather Case univ IS120.x/IS360.2/IS725.2
Made of high quality leather, black with a durable Cordura lining. The leather bag has a magnetic closure. With locking clip for quick attachment to the belt. Suitable for the devices IS120.x/IS360.2/IS725.2.
Display protection foil IS360.2
Display protection foils
Display Protection Foil IS360.x (10 pcs)
Display protection foil IS360.2
Display Protection Foil IS360.x (10 pcs)
Rugged plastic foil for an extended protection of the display.
