Mobile Phone Zone 2/22

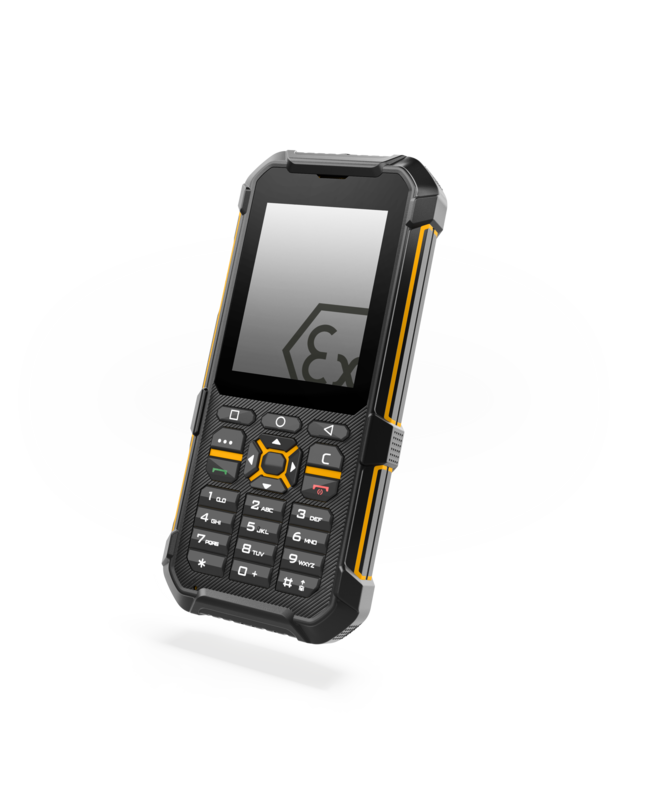

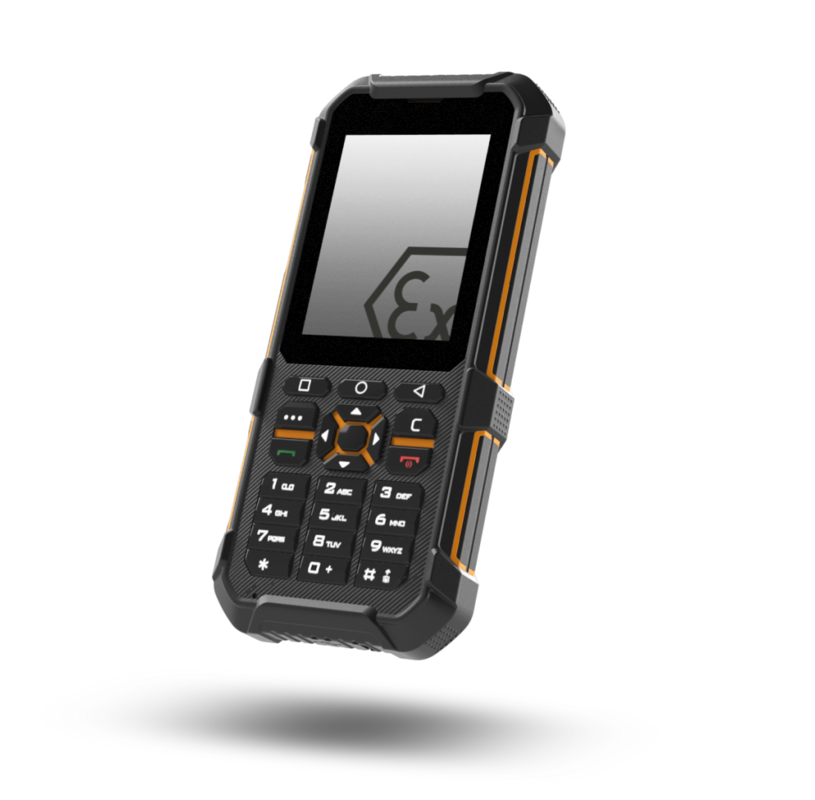

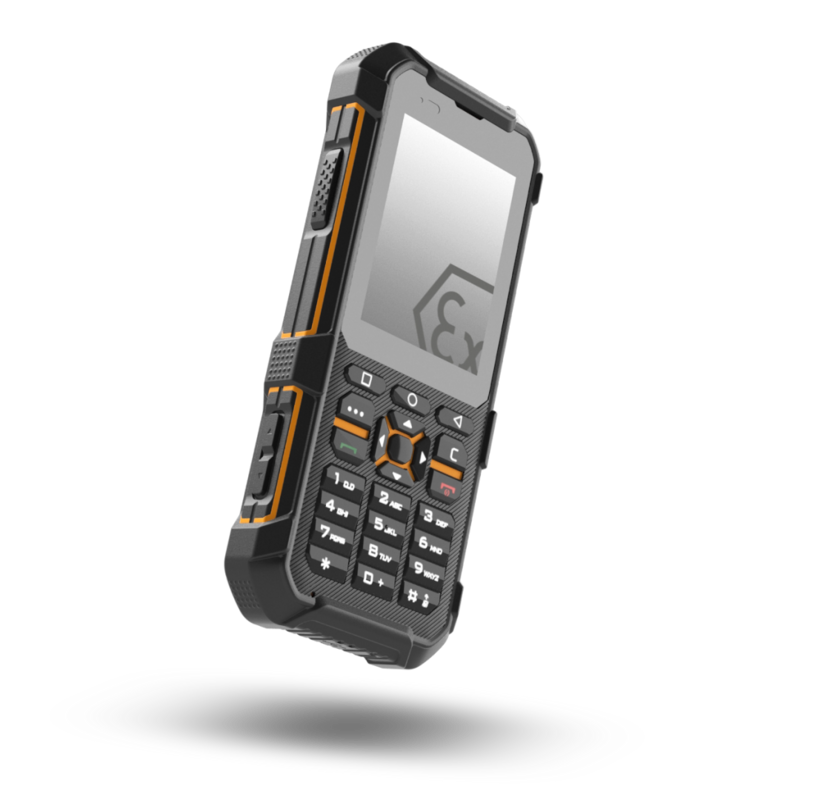

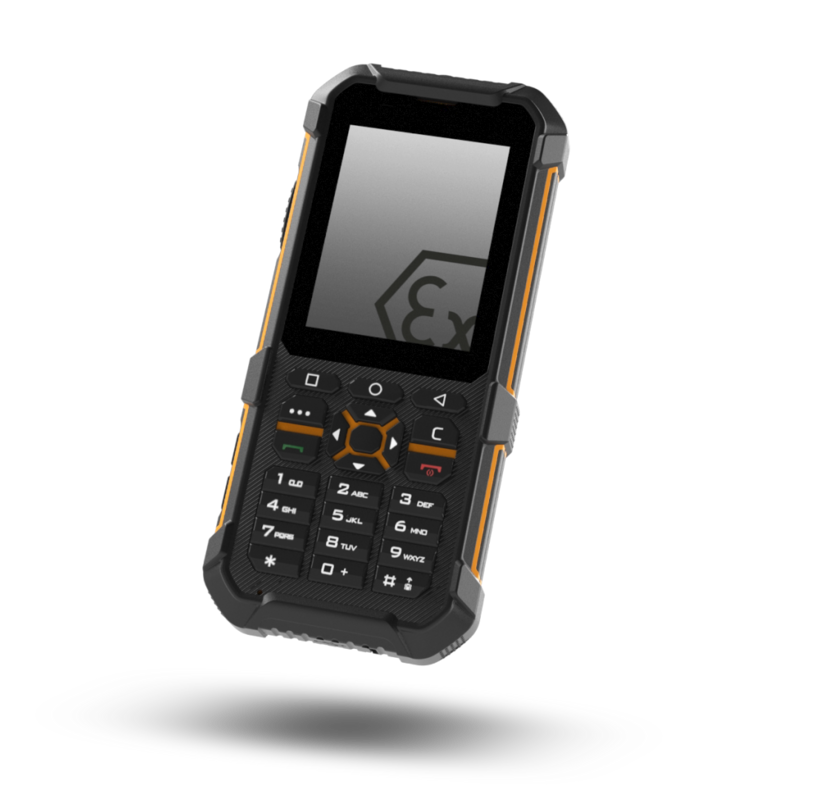

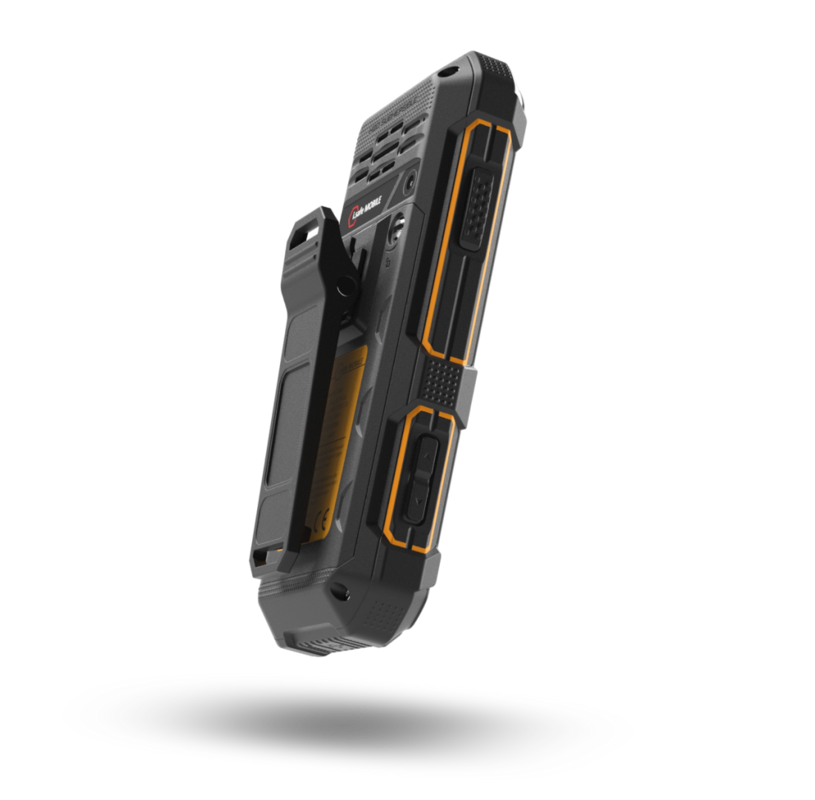

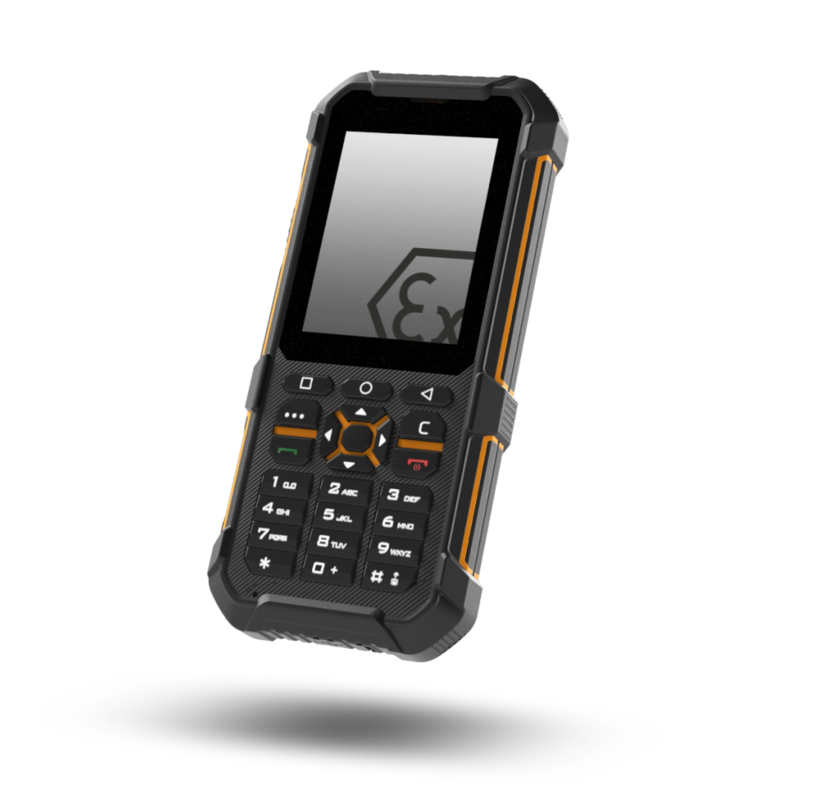

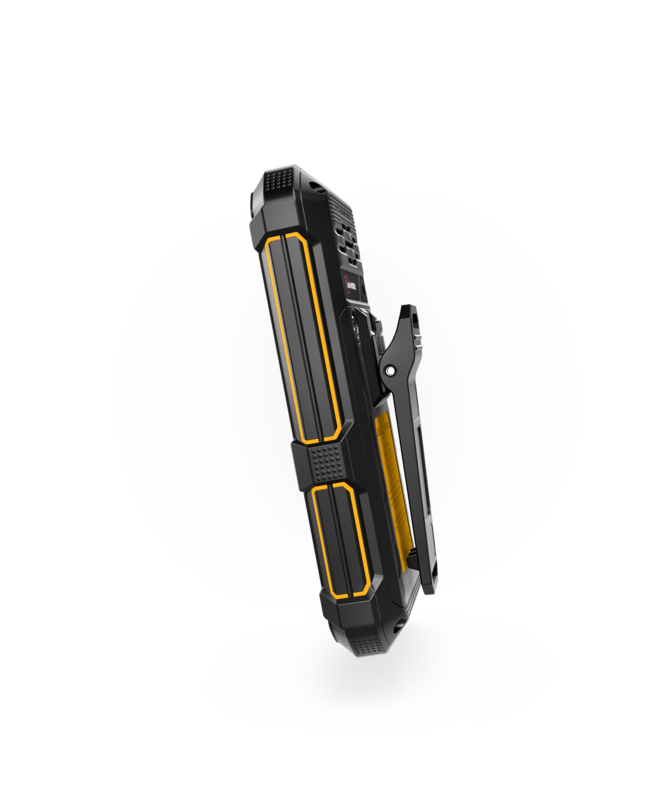

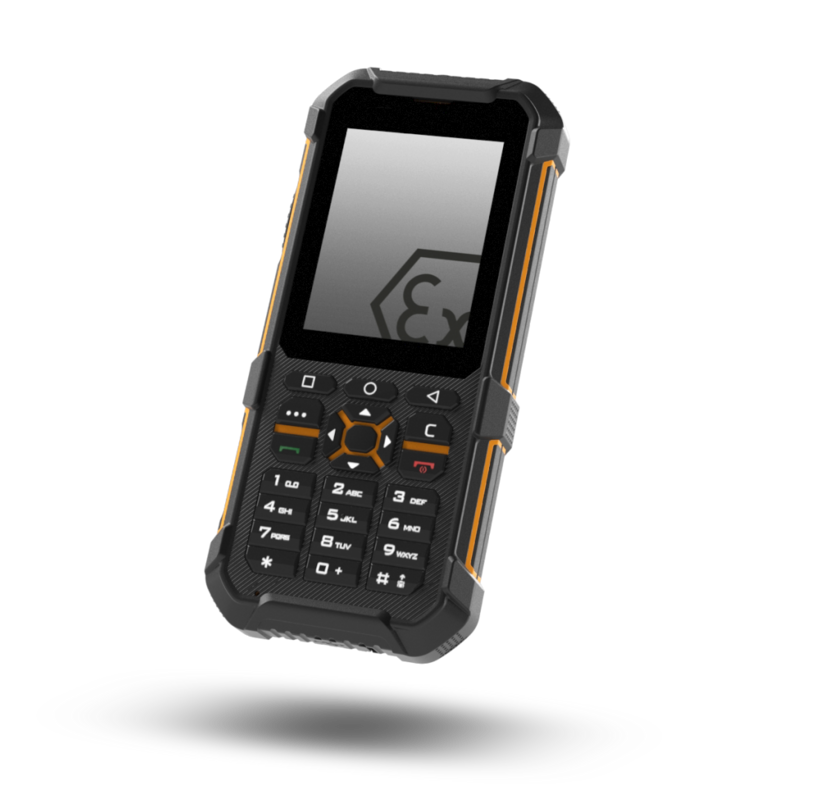

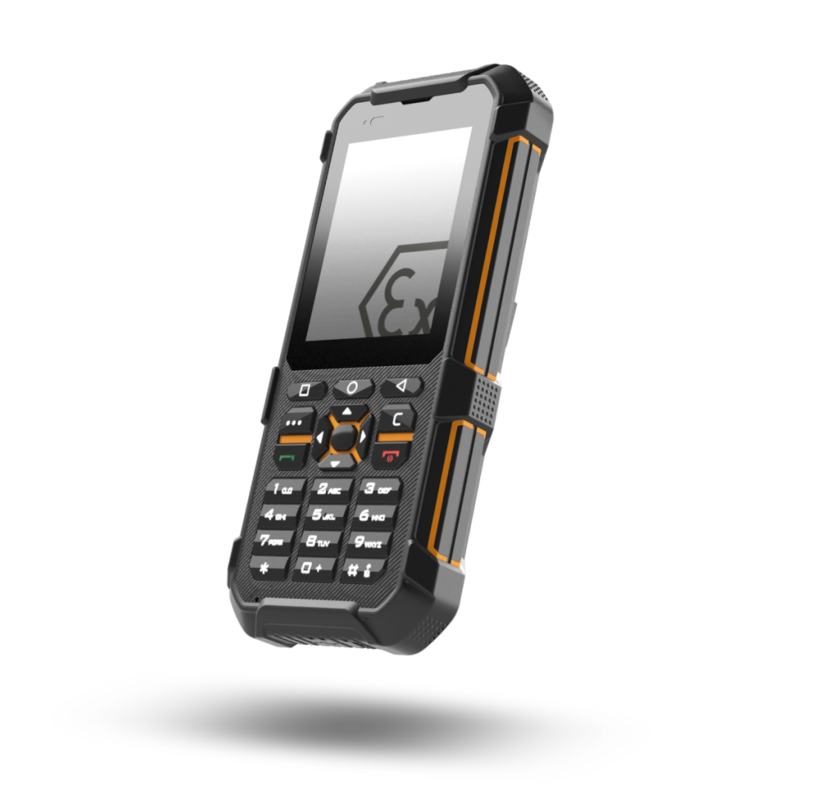

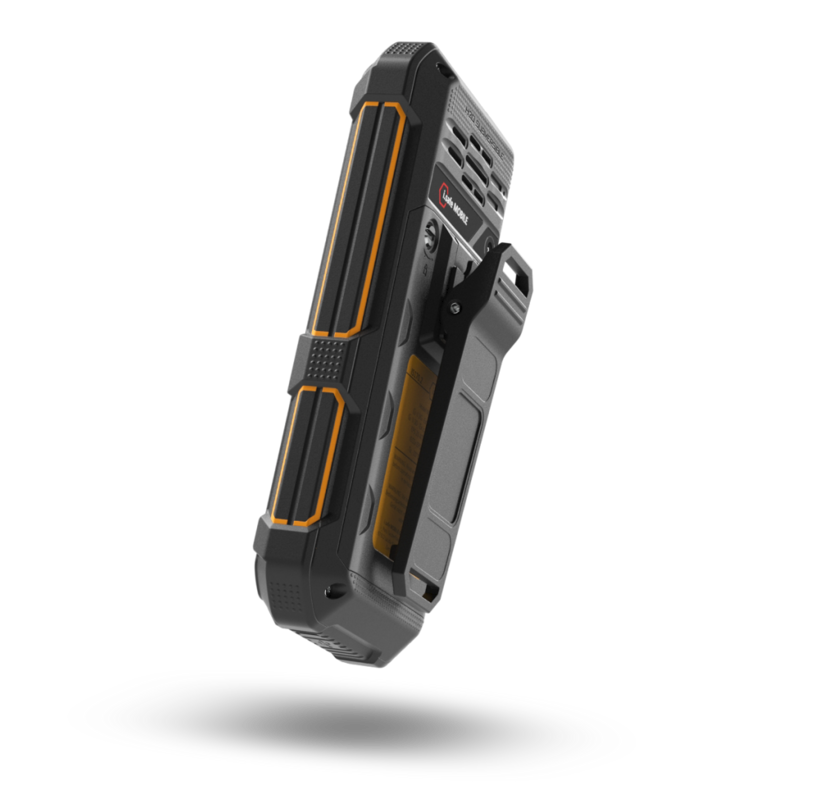

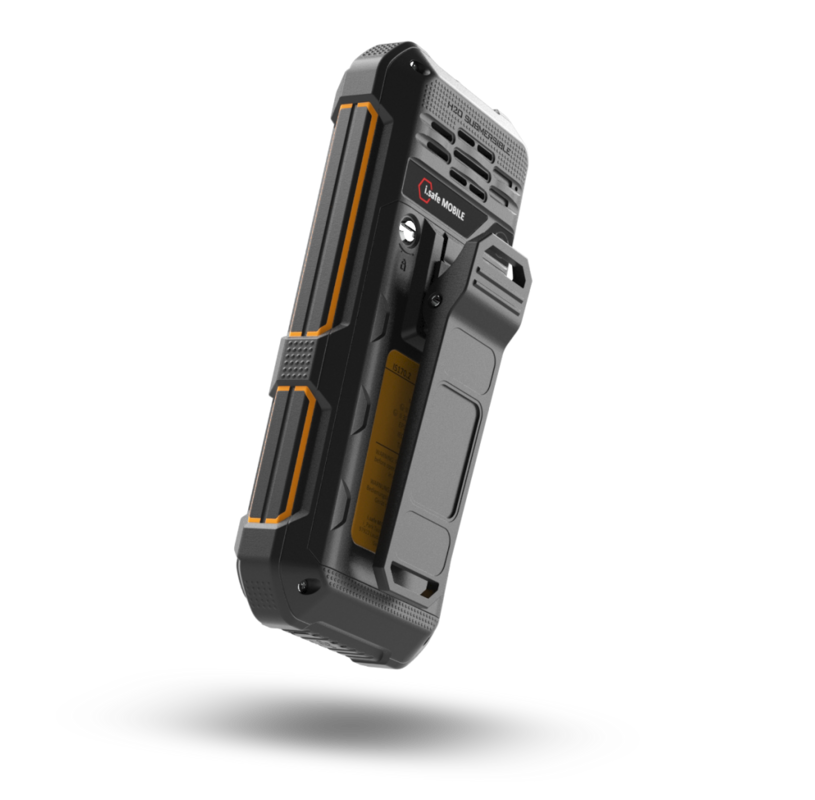

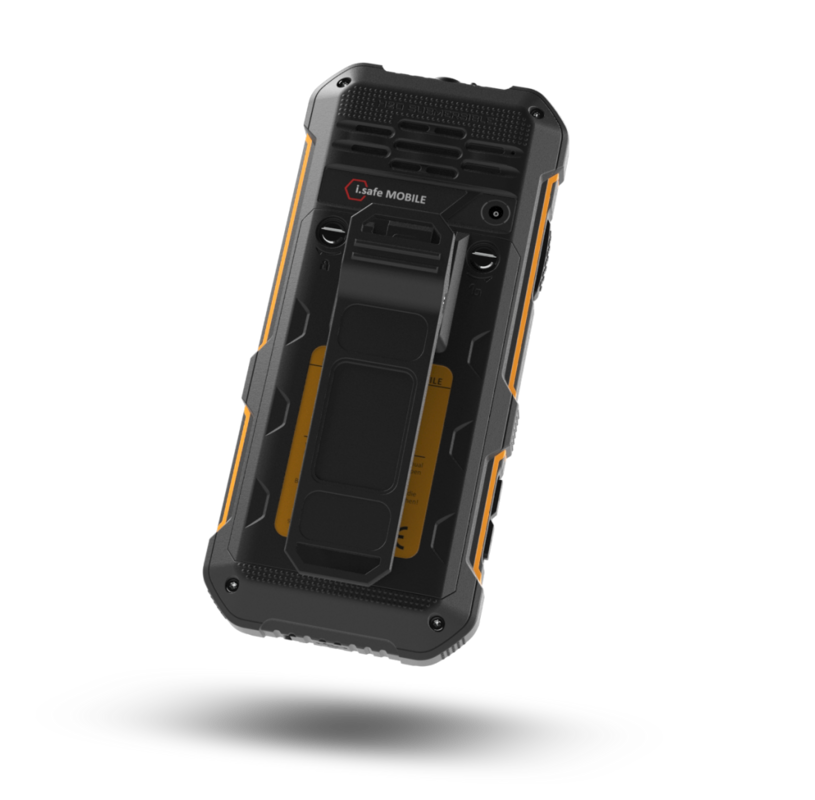

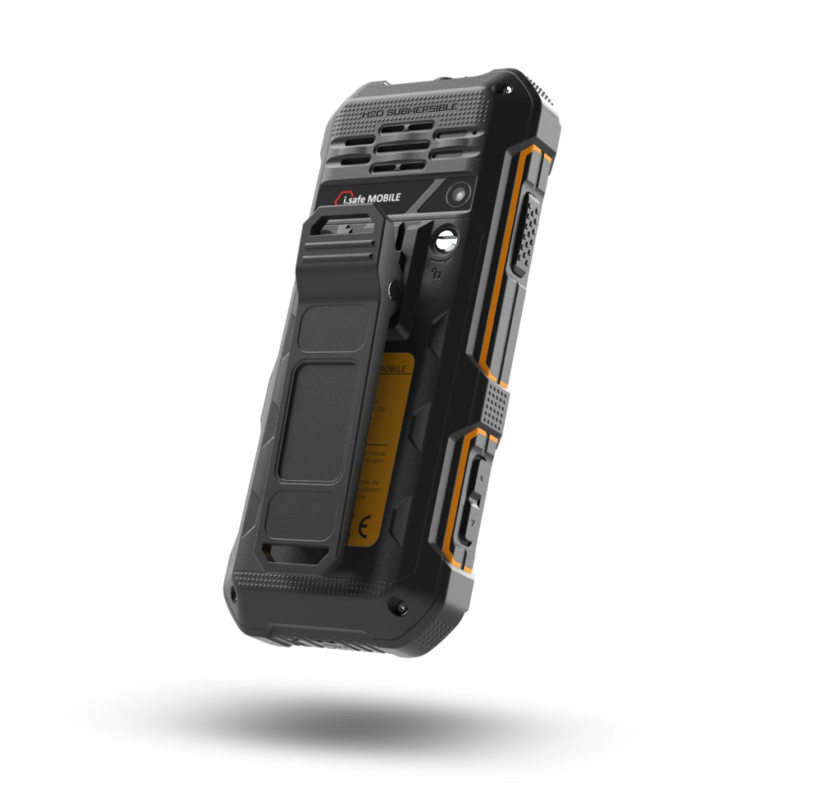

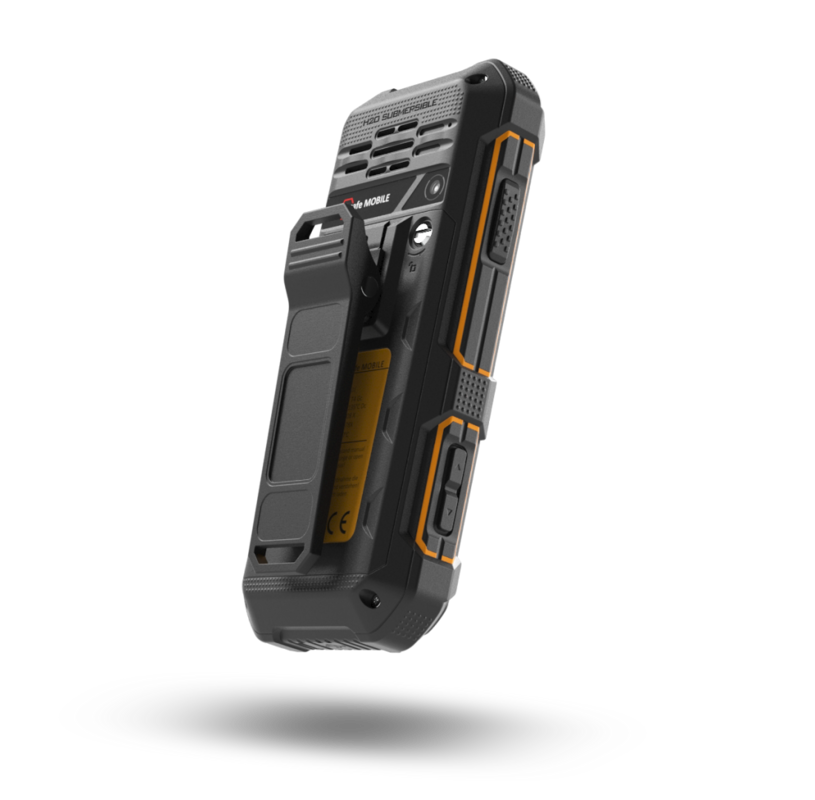

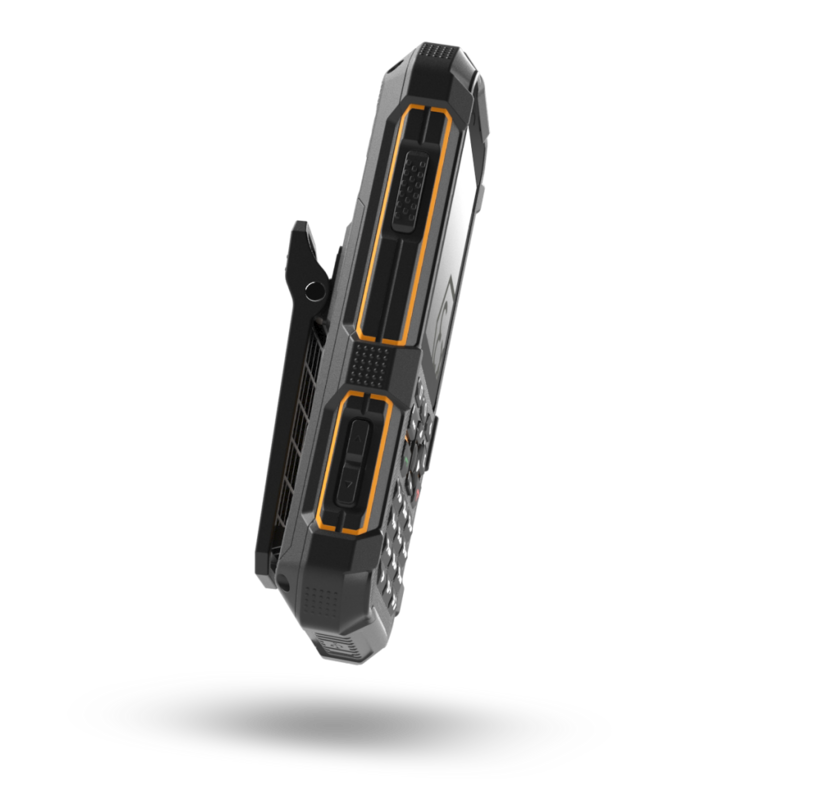

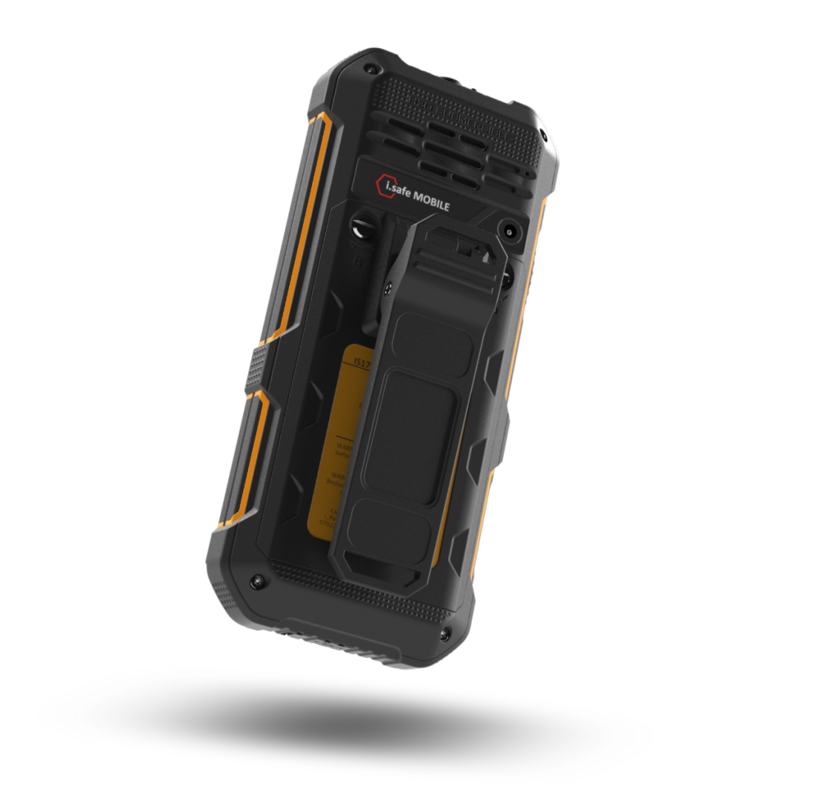

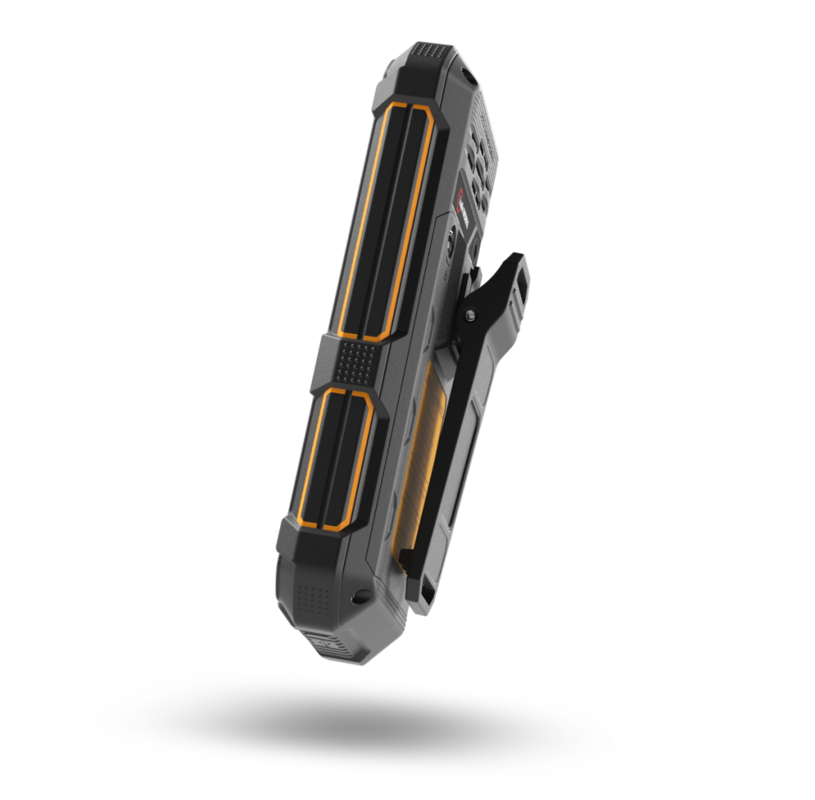

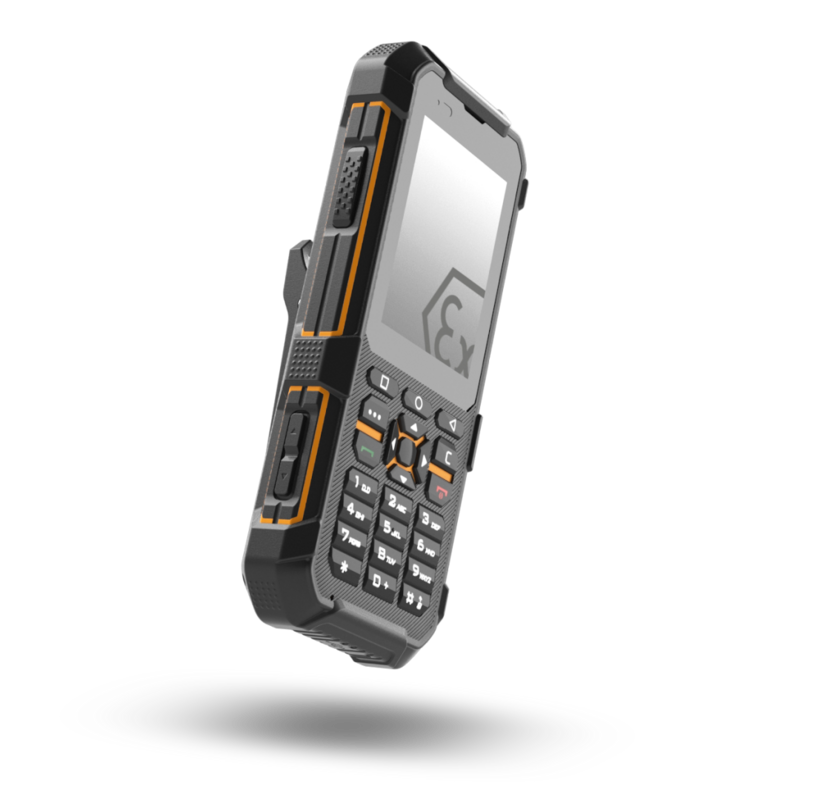

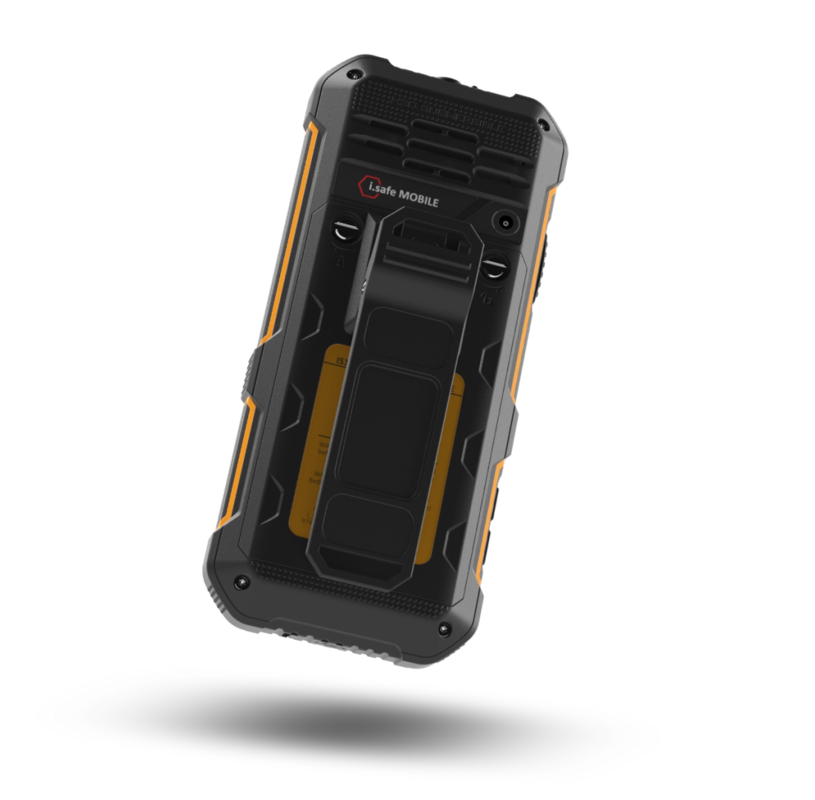

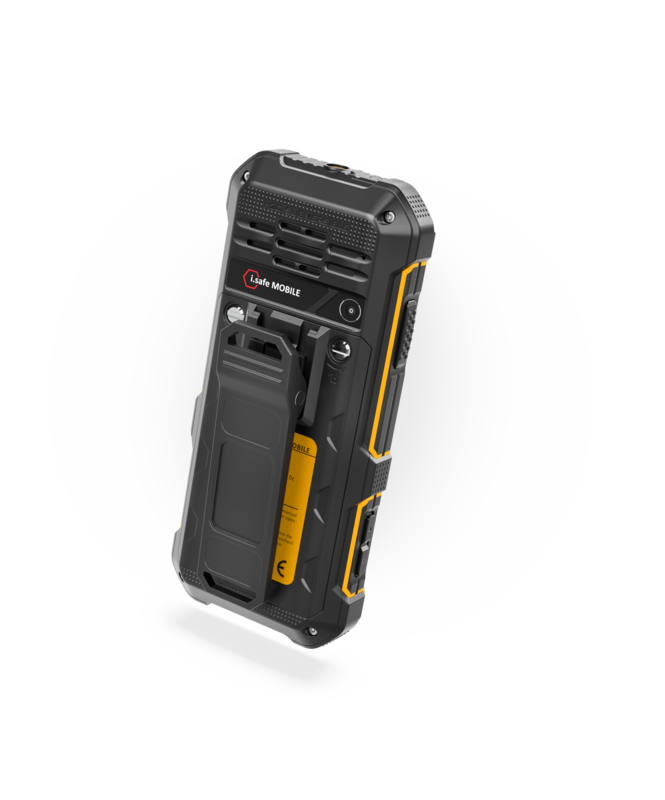

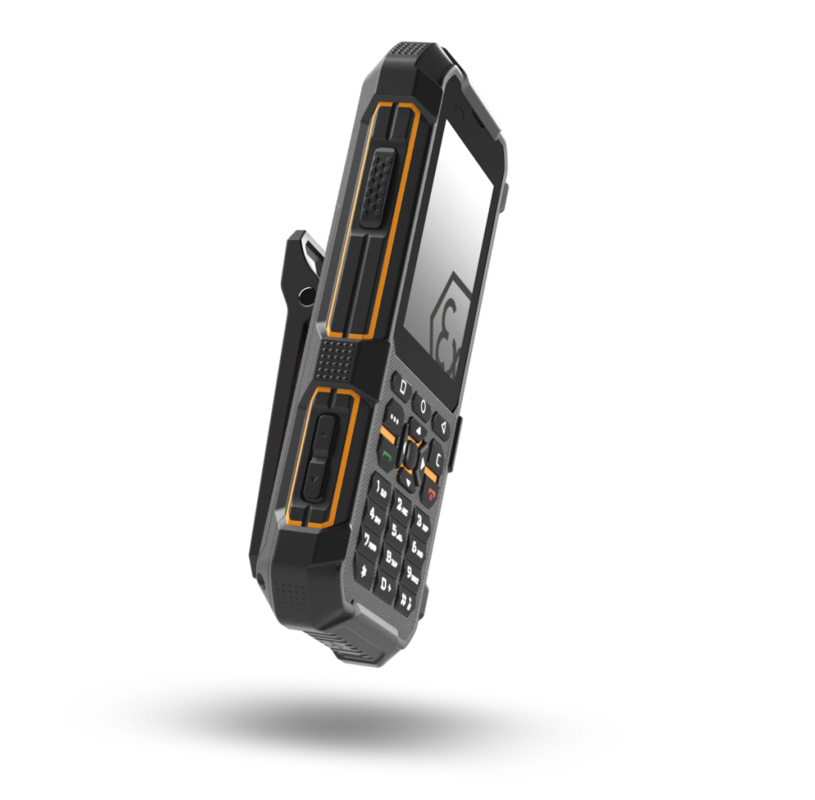

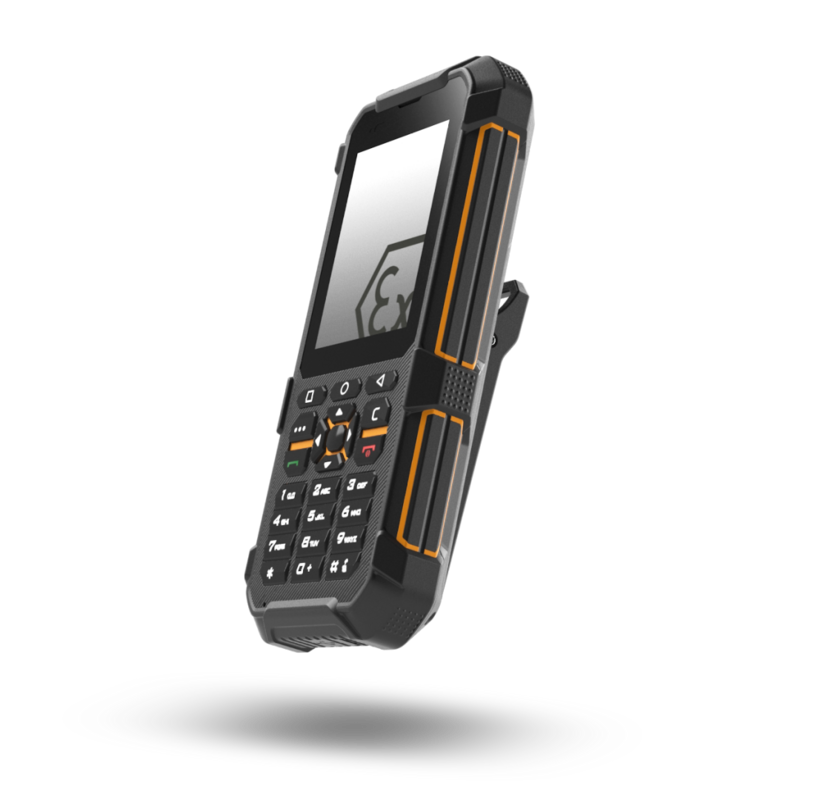

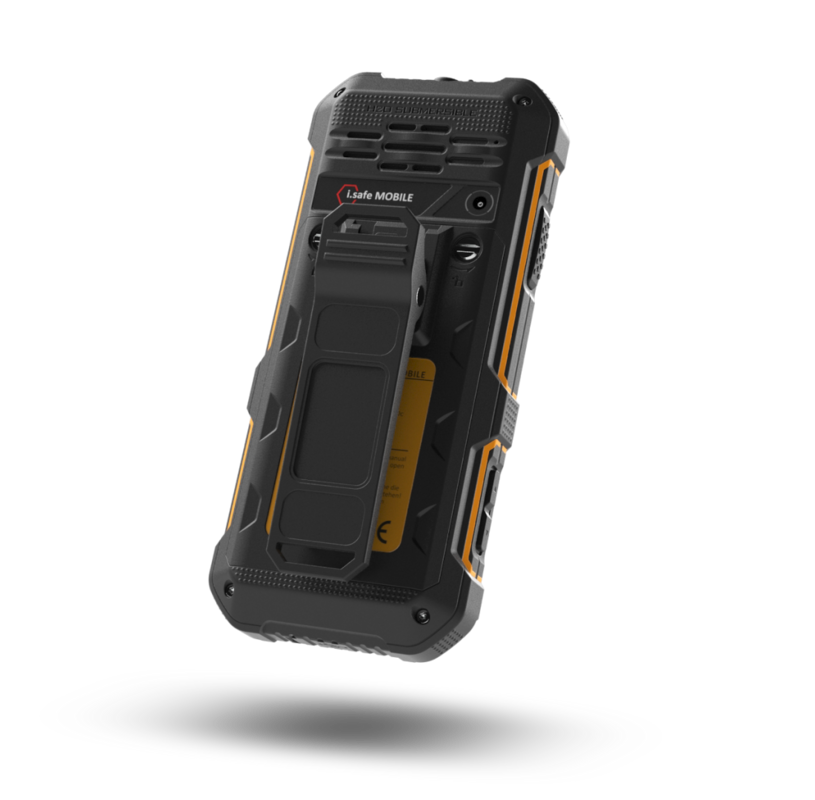

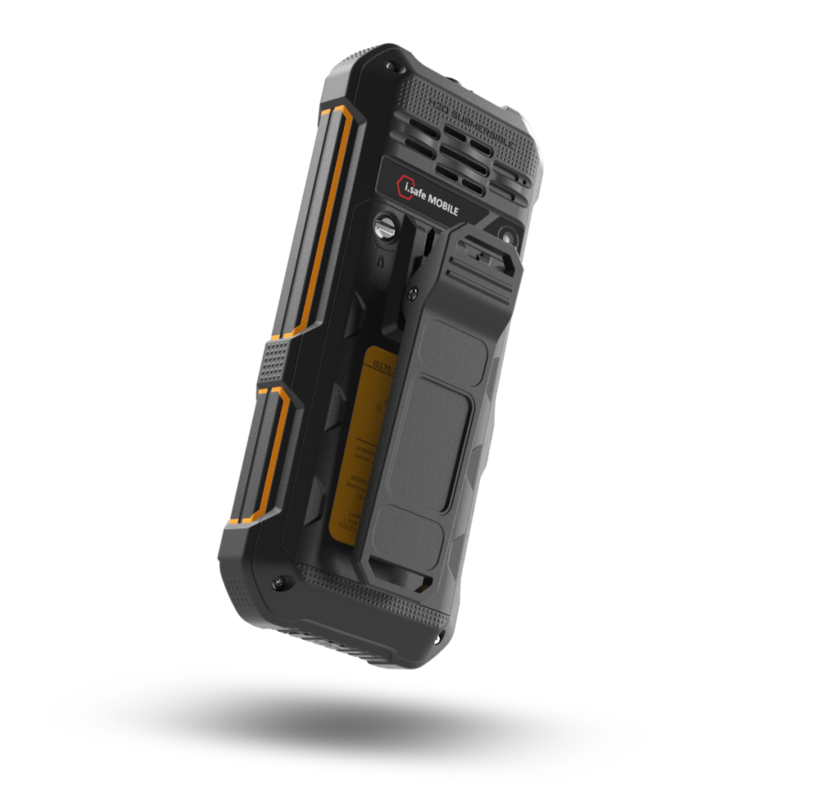

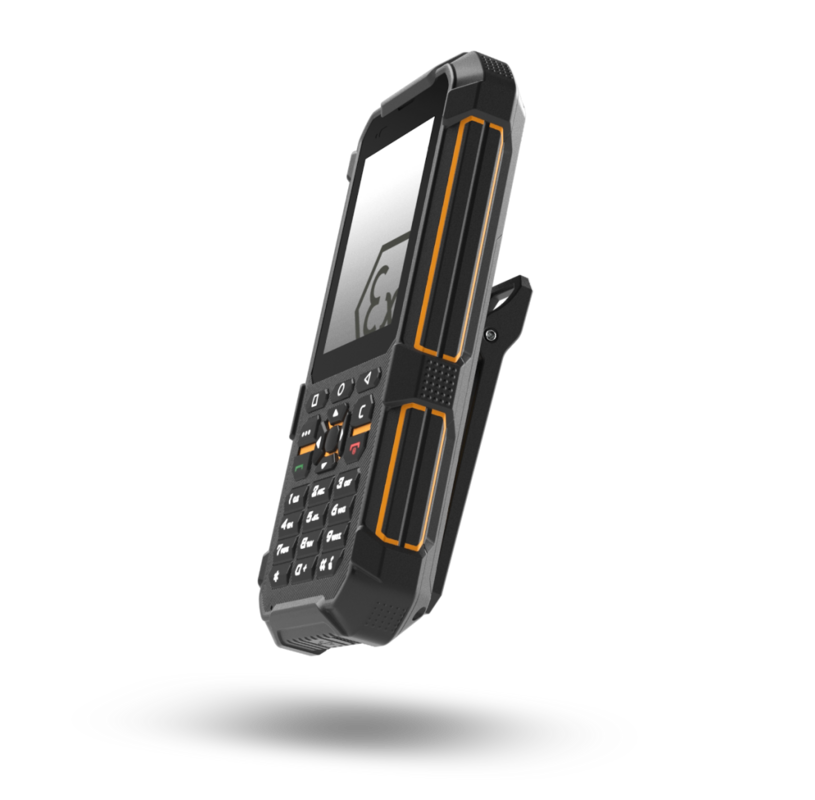

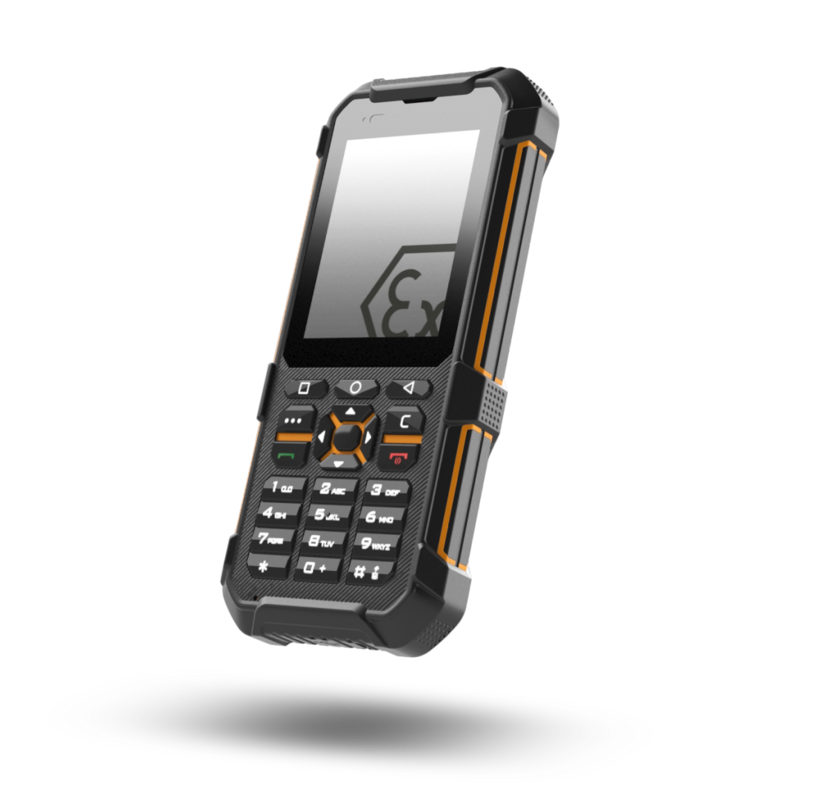

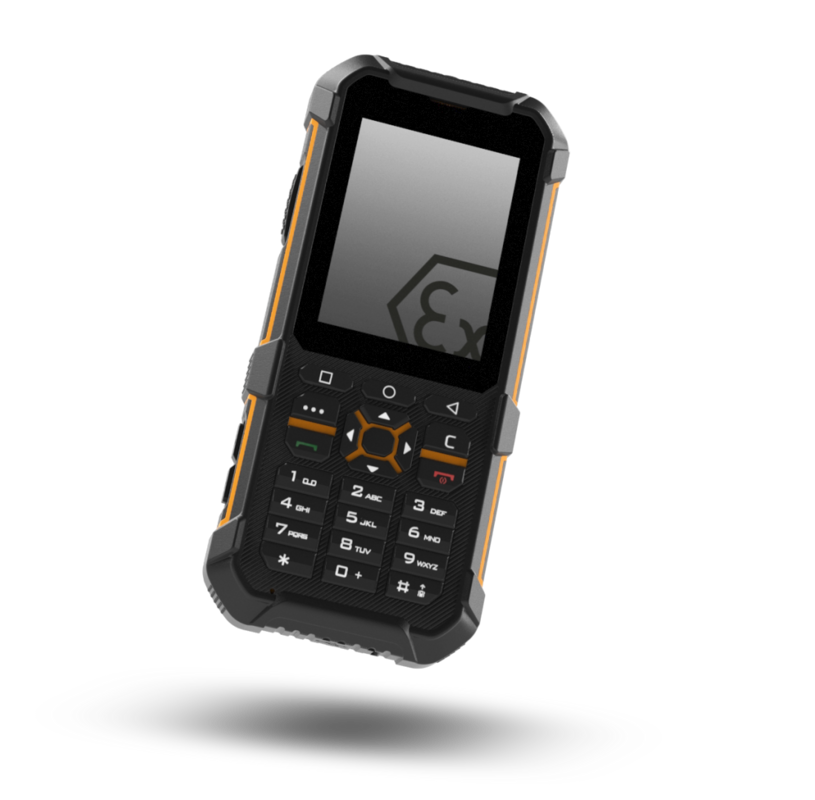

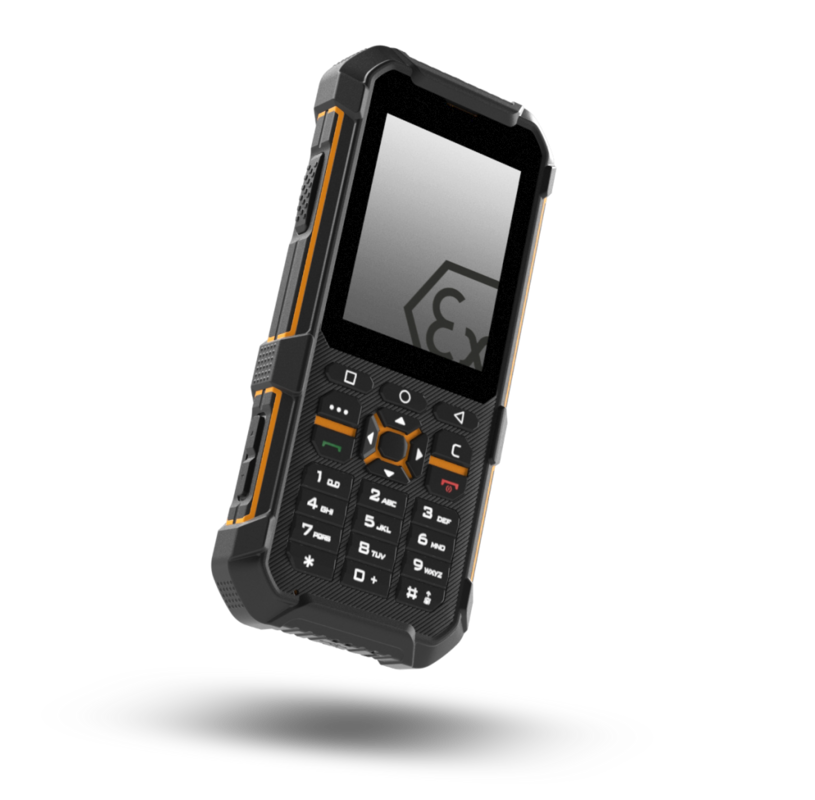

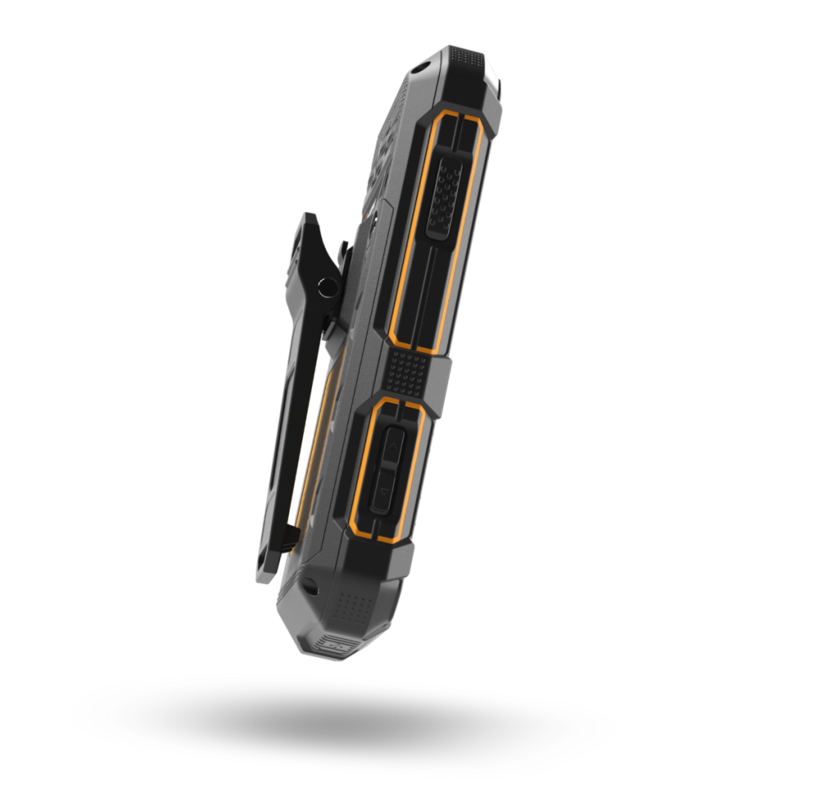

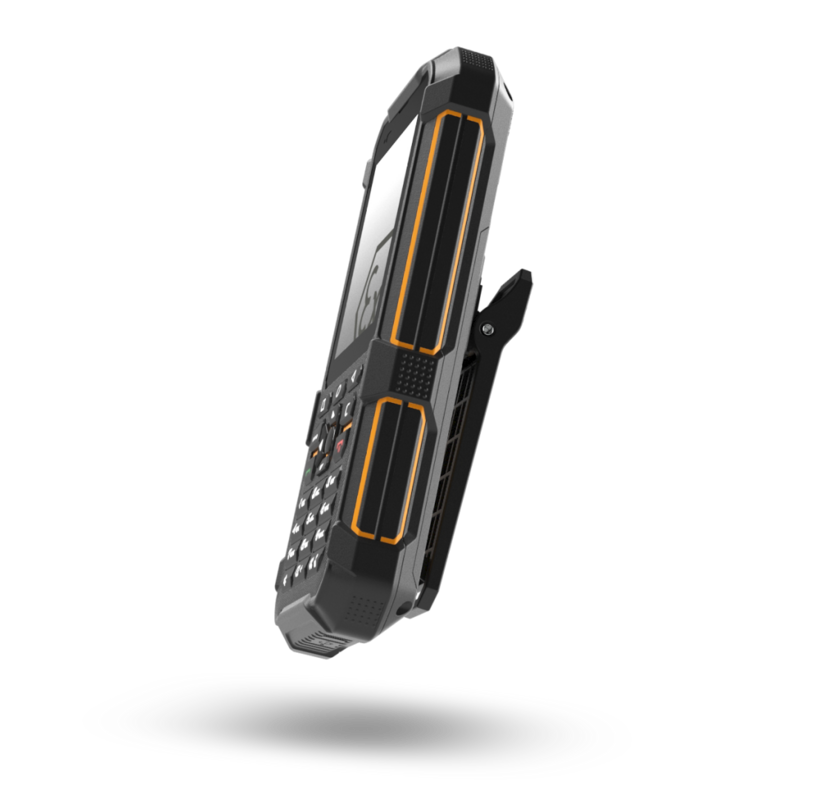

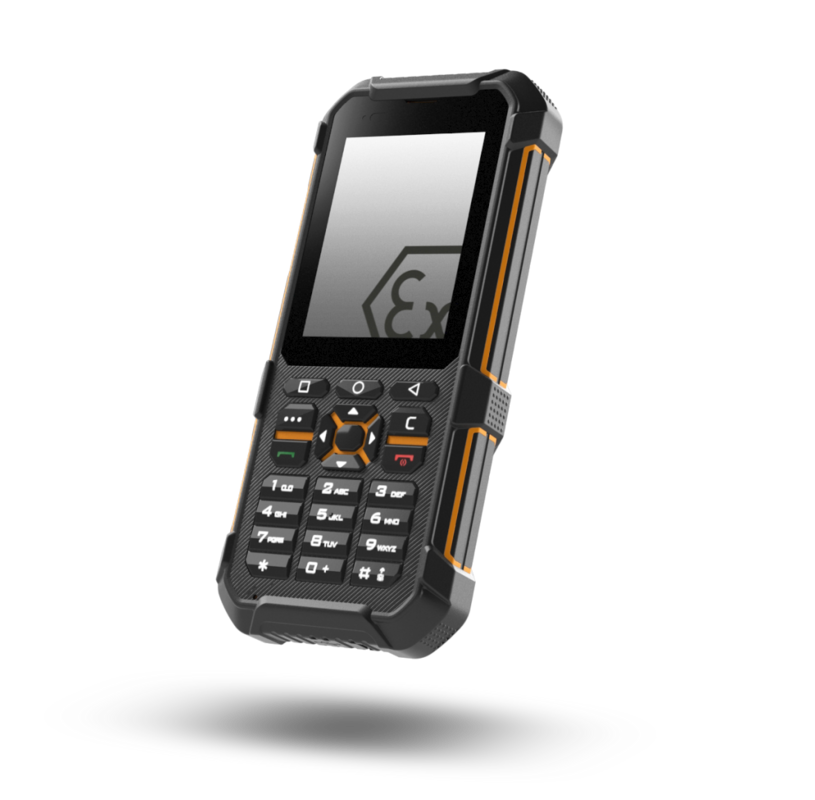

IS170.2

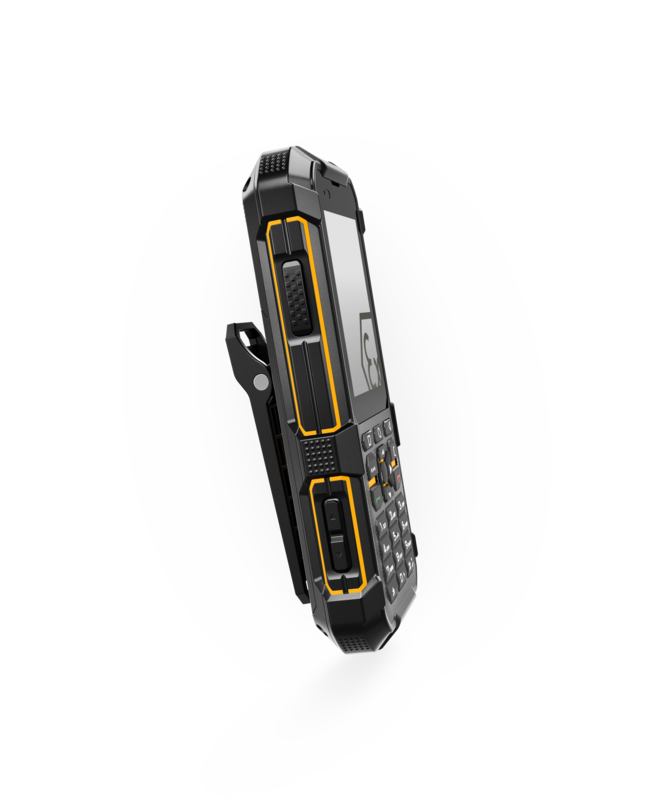

The lightweight and very robust cell phone is equipped with the most important basic functions for day-to-day telephony and messaging use. The slim mobile device scores high marks with its powerful battery, LED flashlight and amplified loudspeaker for use in noisy environments.

Advantages

  • Lightweight and robust
  • High-performance battery for long work shifts

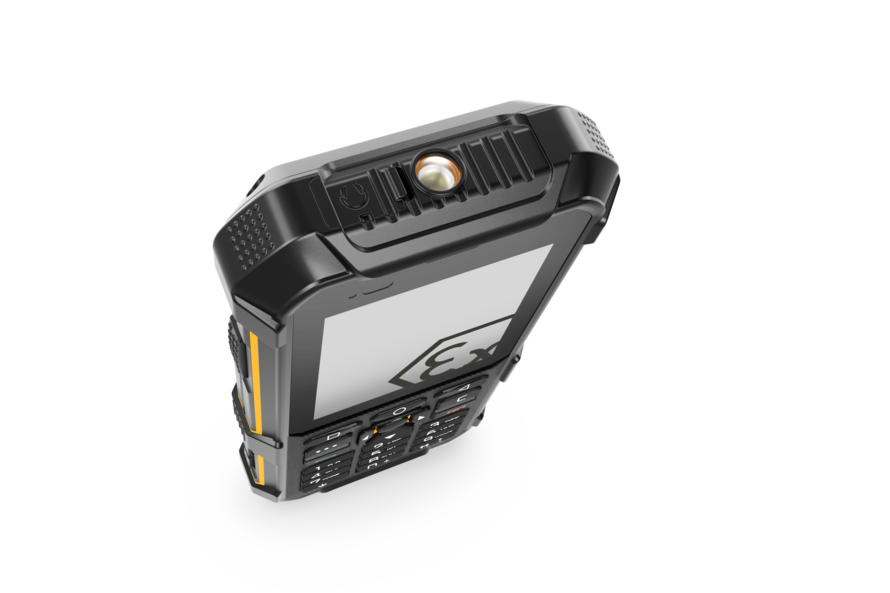

  • Powerful LED torch
  • Amplified loudspeaker for noisy work environments
  • Freely assignable key

Technical features

Operating systemISM-OS
ProcessorMediatek MT6739V/WA Quad Core
Memory1 GB RAM
8 GB internal memory
microSD to 128 GB
Frequencies2G GSM 850/900/1800/1900 MHz
3G WCDMA B1/5/8
4G LTE-FDD: B1/B3/B5/B7/B8/B20
4G LTE-TDD: B40
DimensionsSize: 135,5 x 61 x 21,5 mm
Weight: 197 g
Display2,4" (6,096 cm) Rug Display Glass
Battery2800 mAh, 3,7 V
replaceable
Camera2 MP FF rear
ConnectivityWi-Fi® 2.4 GHz + : IEEE 802.11 b/g/n with hotspot
Bluetooth® 4.2 BLE
GPS, A-GPS, Glonass
Types of protectionIP68 dust-/waterproof
MIL-STD 810G

Further features

Taschenlampe
Powerful LED torch
Verstärkter Lautsprecher
Amplified loudspeaker
Sensors
Accelerometer, Gyroscope, Light, Proximity sensors
SIM cart
Micro-SIM
Ladeoptionen (Desktopcharger, Magnetic)

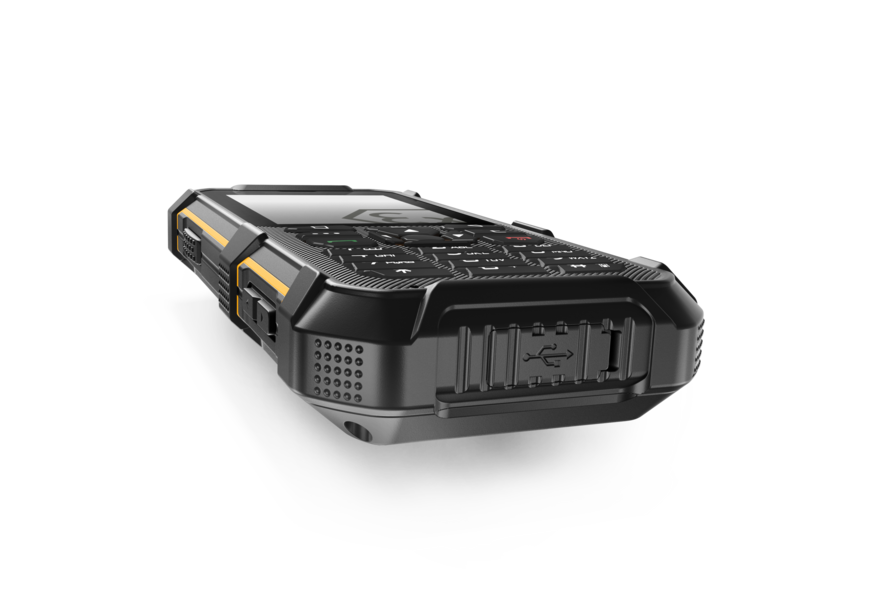

micro-USB
Download datatsheet | pdf ▪ 1 MB

Approvals

ATEX (Europe)
ATEX (Europe)
approved
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIB T135°C Dc
IECEx (International)
IECEx (International)
approved
Ex ic IIC T4 Gc
Ex ic IIIB T135°C Dc

Contents

Included

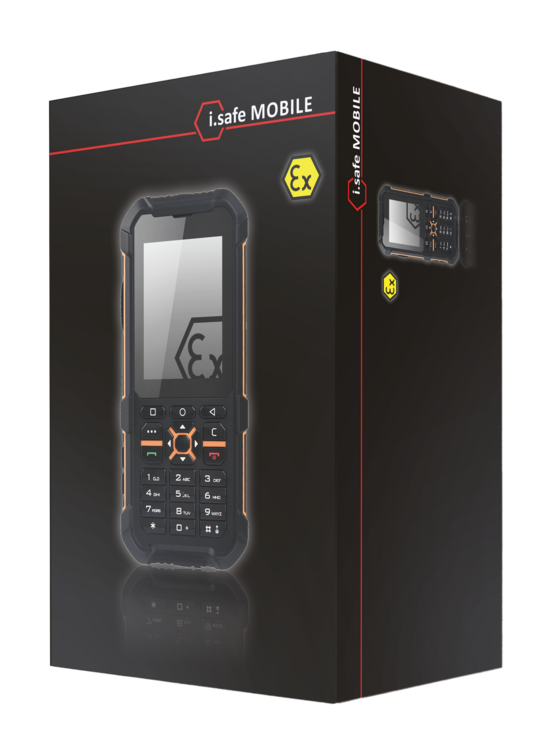

  • Mobile Phone
  • Battery

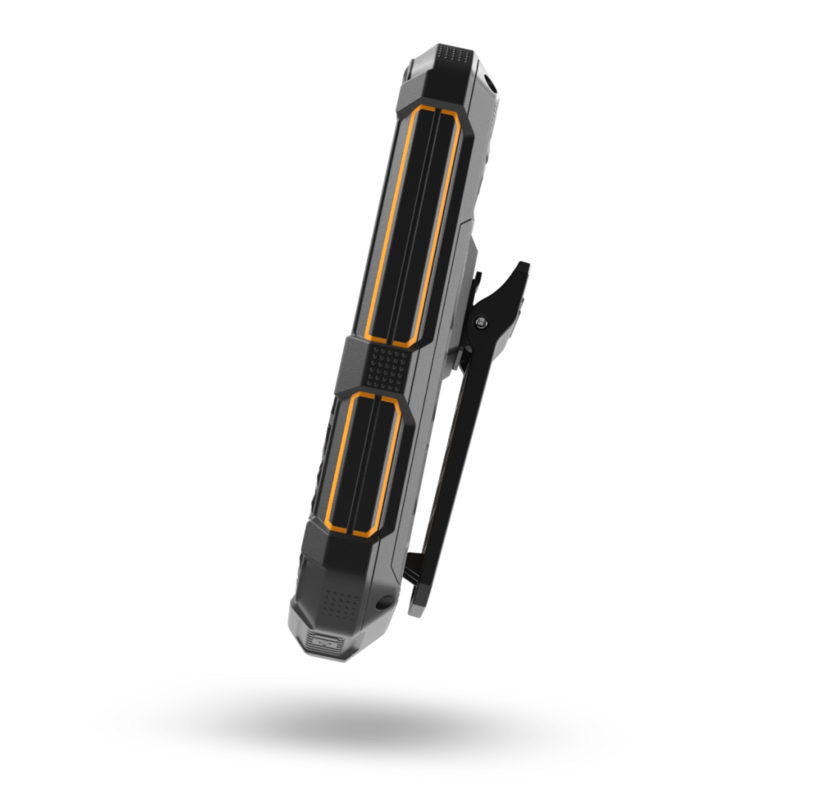

  • Belt Clip
  • Earphone
  • Screwdriver
  • Power Adapter universal
  • Micro-USB Cable
  • Display Protection Foil
  • Safety Instructions
  • Quick Start Manual
Accessories
Batteries

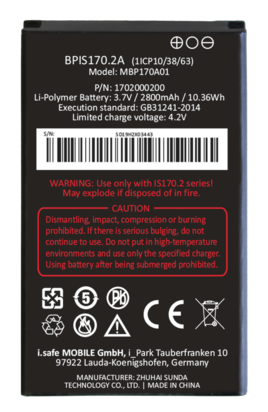

BPIS170.2A Battery
BPIS170.2A Battery
IS170.2 Li-ion battery 2800 mAh, Typ BPIS170.2A, Size 67,86 x 40,0 x 10,37 mm (L x W x H)
Leather Cases

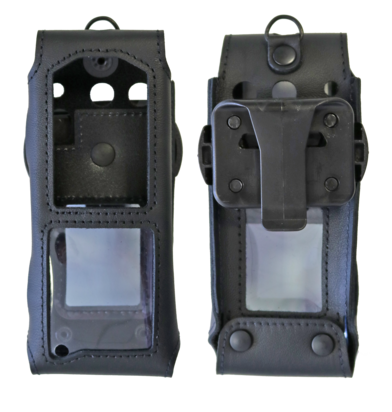

Leather Case black IS170.x
Leather Case black IS170.x
Made of high quality leather, black. With locking clip for quick attachment to the belt.
Leather Cases

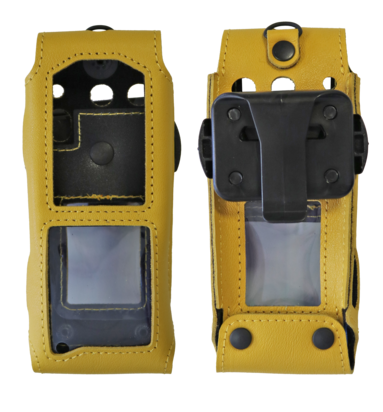

Leather Case yellow IS170.x
Leather Case yellow IS170.x
Made of high quality leather, yellow. With locking clip for quick attachment to the belt.
Leather Cases

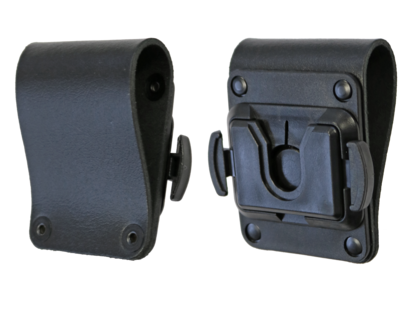

Leather Belt Loop for Leather Case
Leather Belt Loop for Leather Case
For an even more secure attachment of the leather case (e.g. offshore) to a toolbelt.
Handschlaufe lanyard
Carrying systems

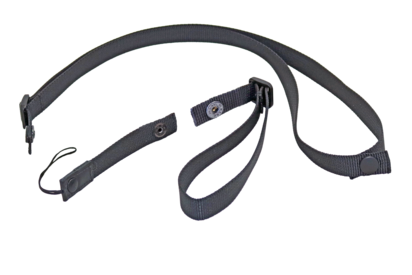

Lanyard/Hand Strap Set
Handschlaufe lanyard
Lanyard/Hand Strap Set
The set consists of the system adapter/fastening loop with push button connection (approx. 16 cm) as well as the tear-resistant, length-adjustable lanyard (adjustable approx. 48 to 66 cm) and the hand strap (adjustable approx. 20 to 25 cm). The hand strap and the lanyard can be easily detached from the system adapter and reattached by means of a pressure lock. The antistatic strap prevents the danger of electrostatic discharge and ignition of the explosive atmosphere. In addition, the lanyard is equipped with a safety lock at the neck, which opens as soon as it is pulled. The Lanyard/Handstrap Set is compatible with the following device series: IS120.x, IS320.1, IS330.x, IS530.x, IS540.x, IS725.2, IS-MP.x and IS-RSM1.1. Furthermore, the lanyard can be attached to the D-ring of the Leather Case.
IS170 display protection foil
Display protection foils

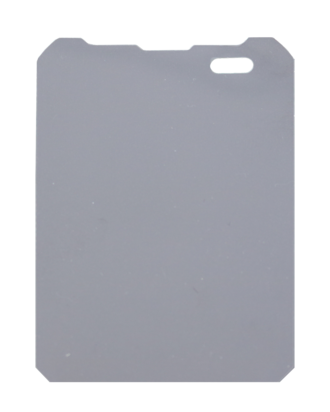

Display Protection Foil IS170.2
IS170 display protection foil
Display Protection Foil IS170.2
Rugged plastic foil for an extended protection of the display.

DOWNLOADS

Datasheet IS170.2
English
pdf
1 MB
Download
Manual IS170.2
pdf
2 MB
Download
DoC IS170.2
pdf
200 KB
Download
ATEX IS170.2
pdf
720 KB
Download
IECEx IS170.2
pdf
1 MB
Download
